Exploded View

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

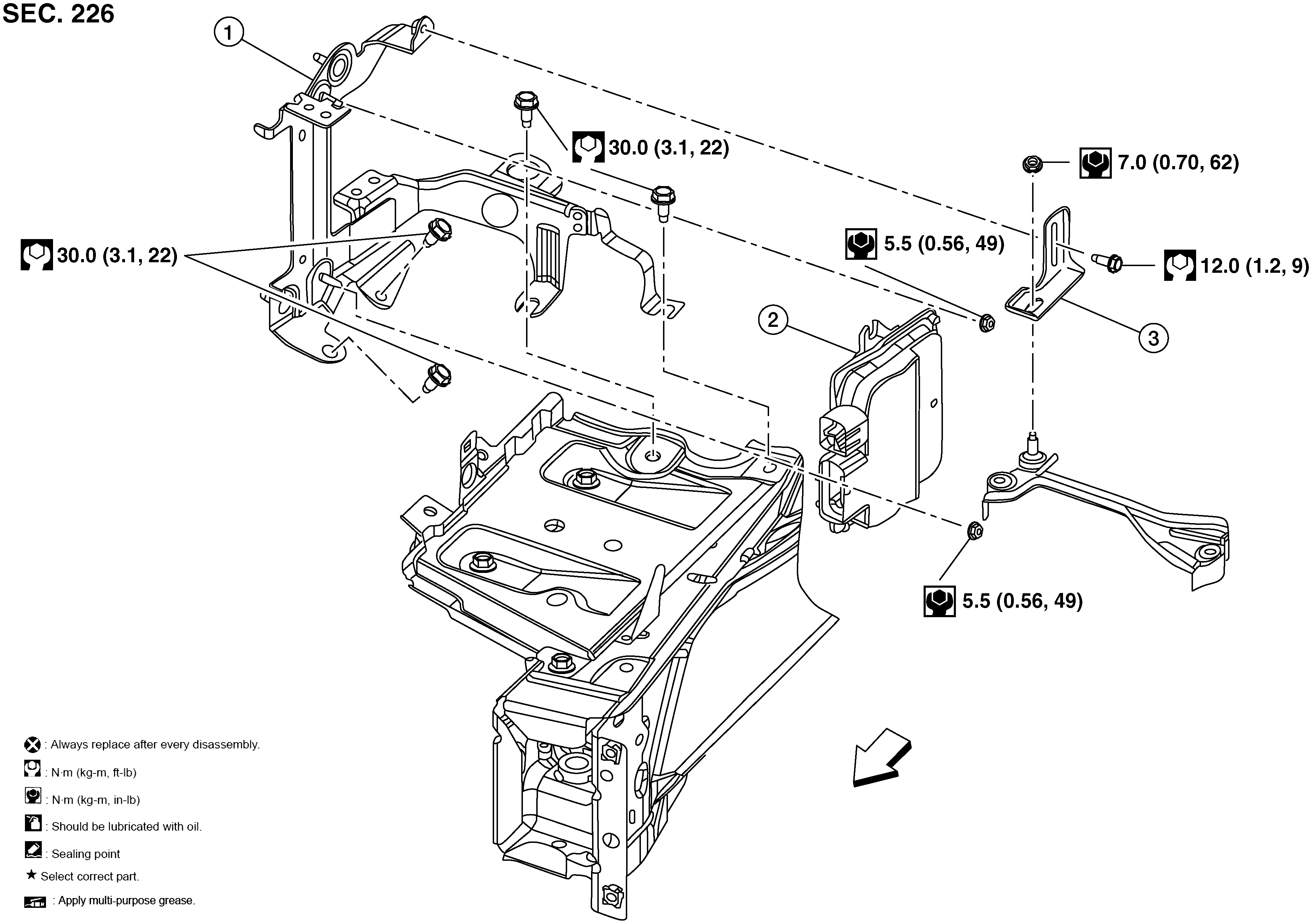

Fig 1: Electric Intake Valve Timing Control Module Components With Torque Specification
GNSALBIA3264Z-264Courtesy of NISSAN NORTH AMERICA, INC.

1.

Electric intake valve timing control module bracket

2.

Electric intake valve timing control module

3.

ECM cover

SYMBOL

Front
