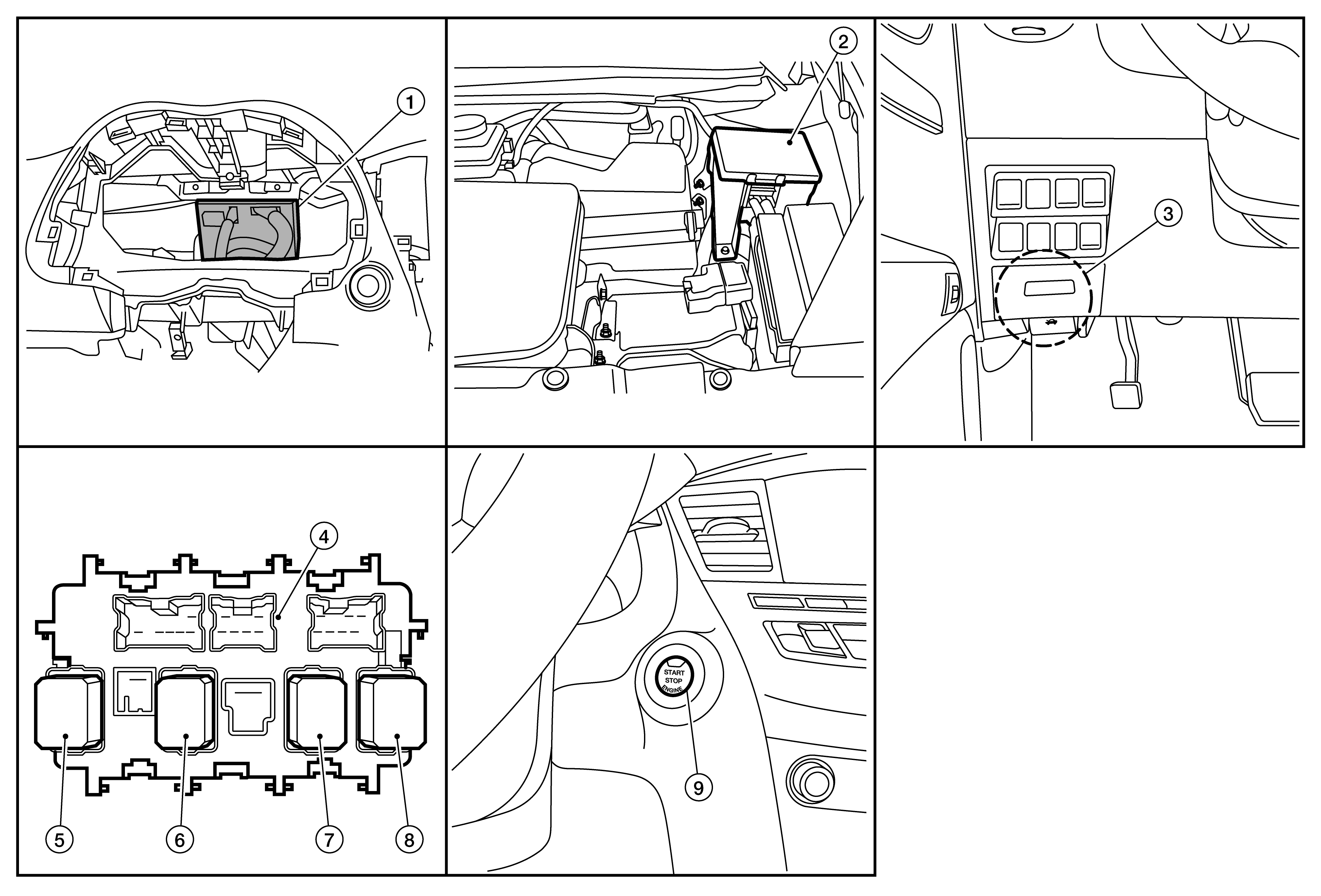

Component Parts Location
WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
BCM
|
2.
|
IPDM E/R (contains Ignition relay-1)
|
3.
|
Fuse block (J/B)
|
|
4.
|
Fuse block (J/B) (back side shown)
|
5.
|
Ignition relay-2
|
6.
|
Front blower motor relay
|
|
7.
|
Rear window defogger relay
|
8.
|
Accessory relay-1
|
9.
|
Push-button ignition switch
|
