Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the combination meter. Refer to Removal and Installation .

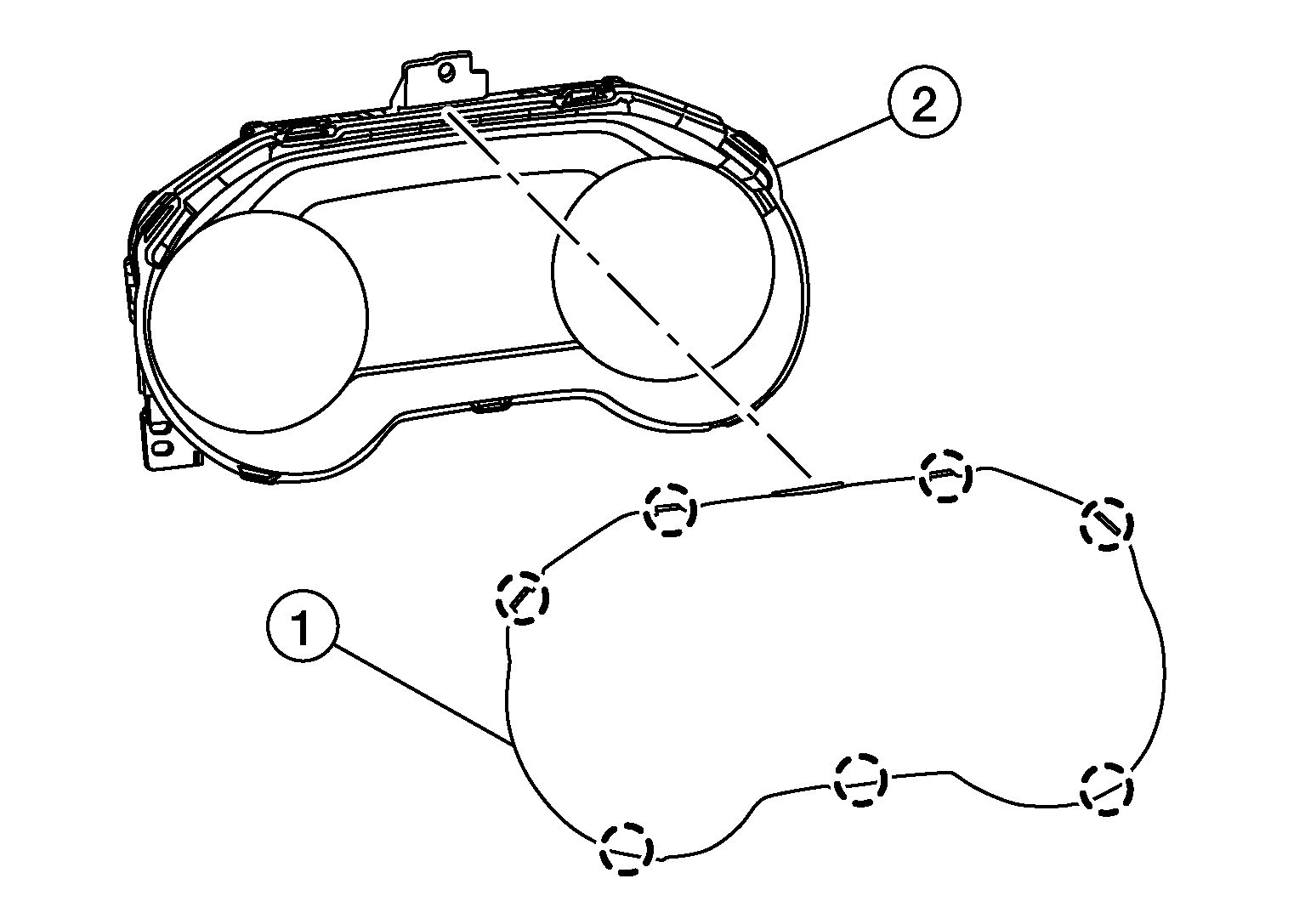

  2. Release the combination meter lens (1) pawls from the combination meter (2) using a suitable tool and remove.
    GNSALIIA1113Z-113Courtesy of NISSAN NORTH AMERICA, INC.
