Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

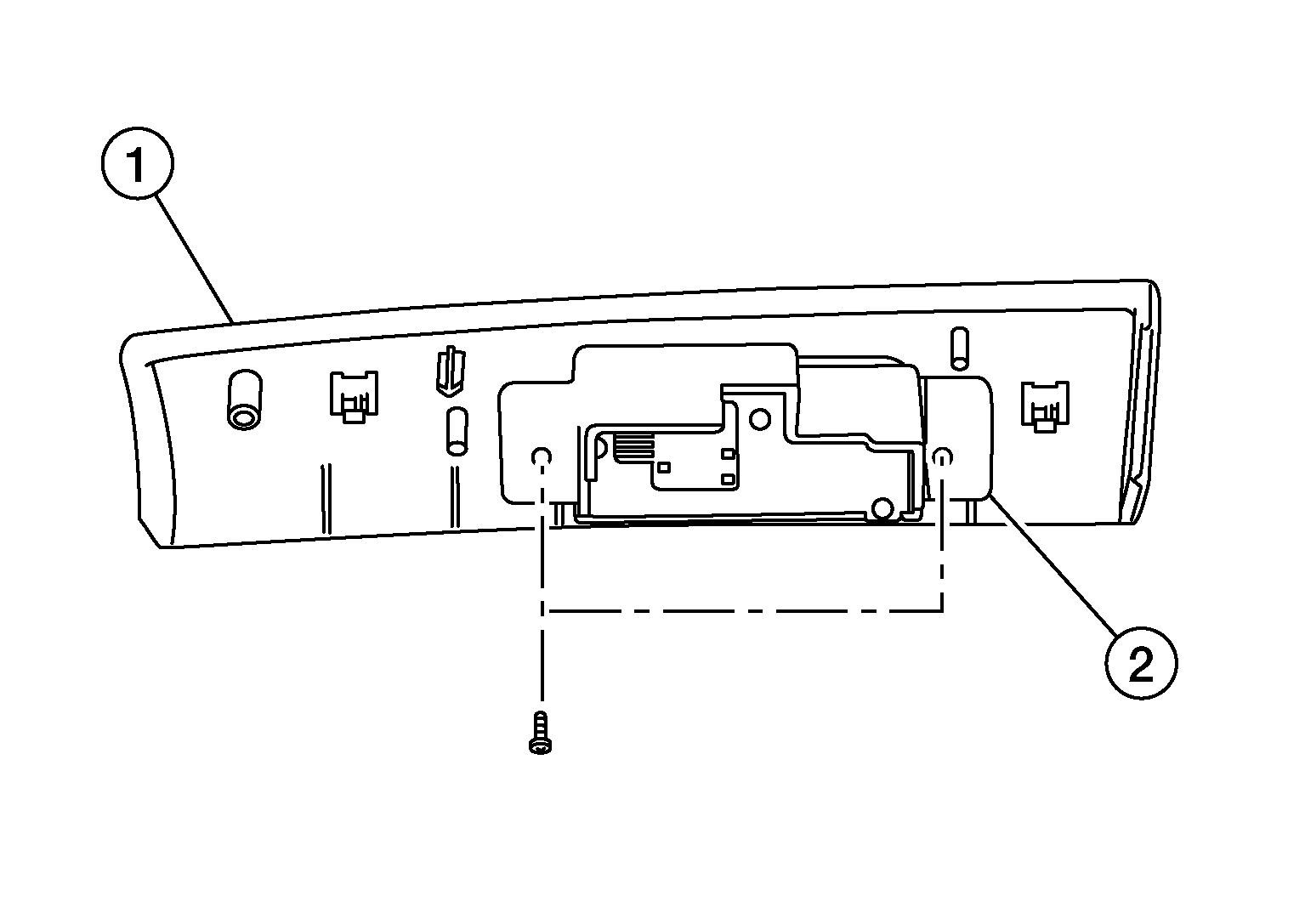

  1. Remove instrument finisher A (1). Refer to Removal and Installation .
    GNSALIIA1115Z-115Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove screws from the meter control switch (2) and remove.
