Component Inspection
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK POWER STEERING PRESSURE SENSOR
- Turn ignition switch OFF.
- Reconnect all harness connectors disconnected.
- Start engine and let it idle.

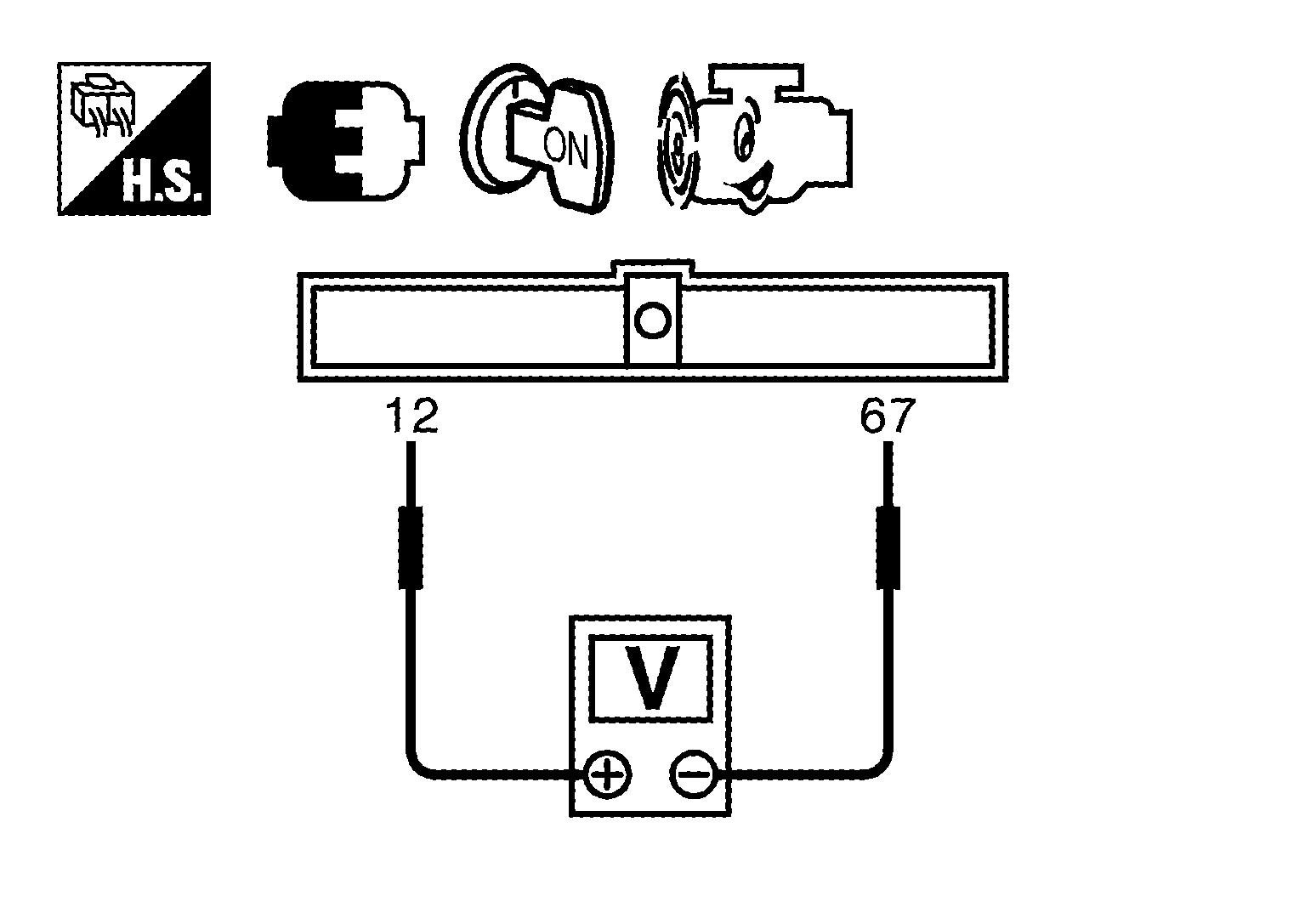

- Check the voltage between ECM harness connector terminals as per the following conditions.
ECM
Condition
Voltage
(Approx.)
Connector
+
-
Terminal
F77
65
72
Steering wheel
Being turned
0.5 - 4.5 V
Not being turned
0.4 - 0.8 V
Is the inspection result normal?
YES
INSPECTION END
NO
Replace power steering pressure sensor. Refer to Component Parts Location .
