Component Inspection

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

CHECK KNOCK SENSOR

Turn ignition switch OFF.
Disconnect knock sensor harness connector.

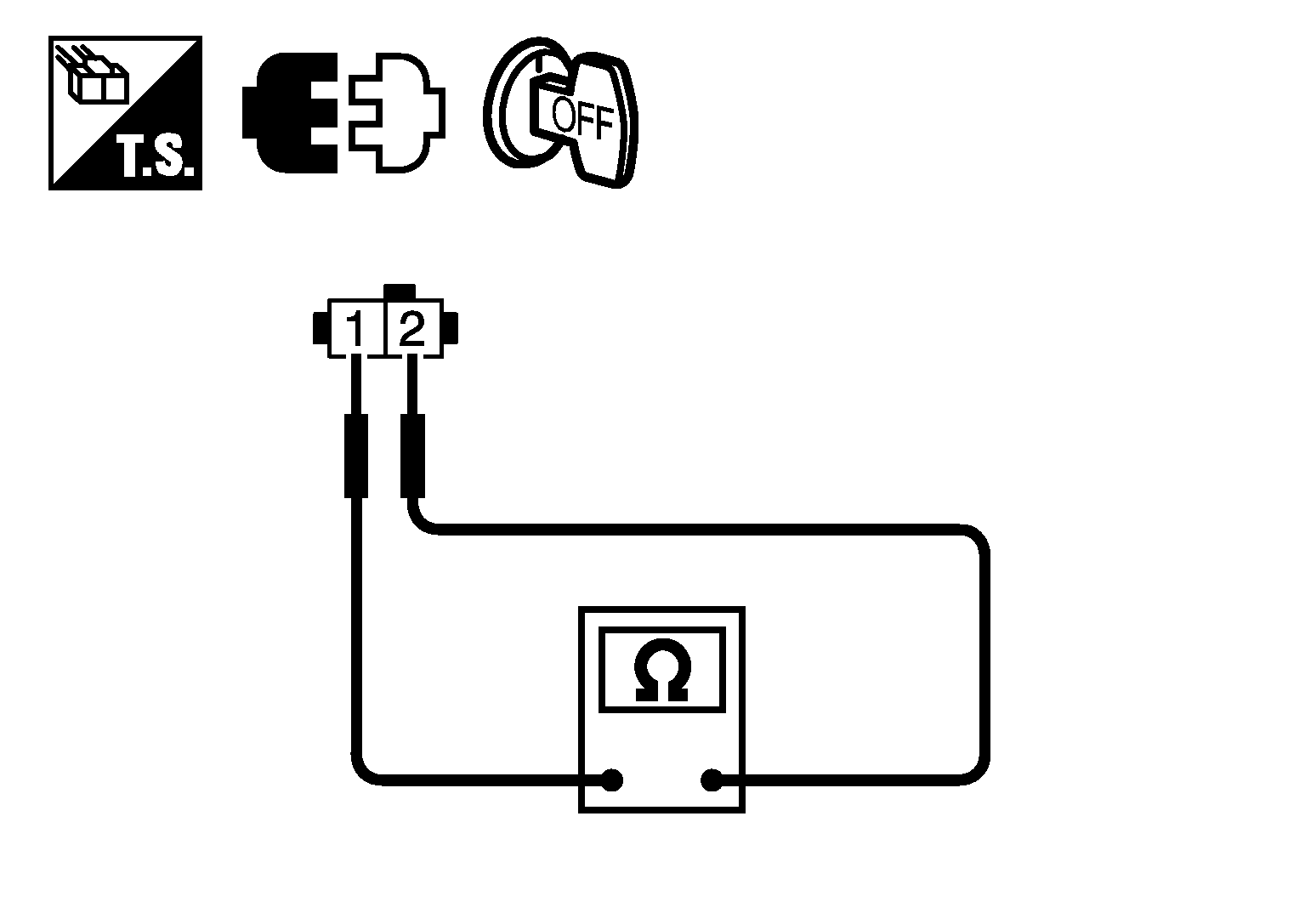

Check resistance between knock sensor terminals as per the following.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: It is necessary to use an ohmmeter which can measure more than 10 MΩ.

Knock sensor		Resistance
+	-
Terminals
1	2	Approx. 532 - 588 kΩ [at 20°C (68°F)]

CAUTION: Do not use any knock sensors that have been dropped or physically damaged. Use only new ones.

Is the inspection result normal?

YES

INSPECTION END

Replace knock sensor. Refer to Exploded View .
