Component Inspection

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK THROTTLE CONTROL MOTOR
    1. Turn ignition switch OFF.
    2. Disconnect electric throttle control actuator harness connector. Refer to Exploded View .

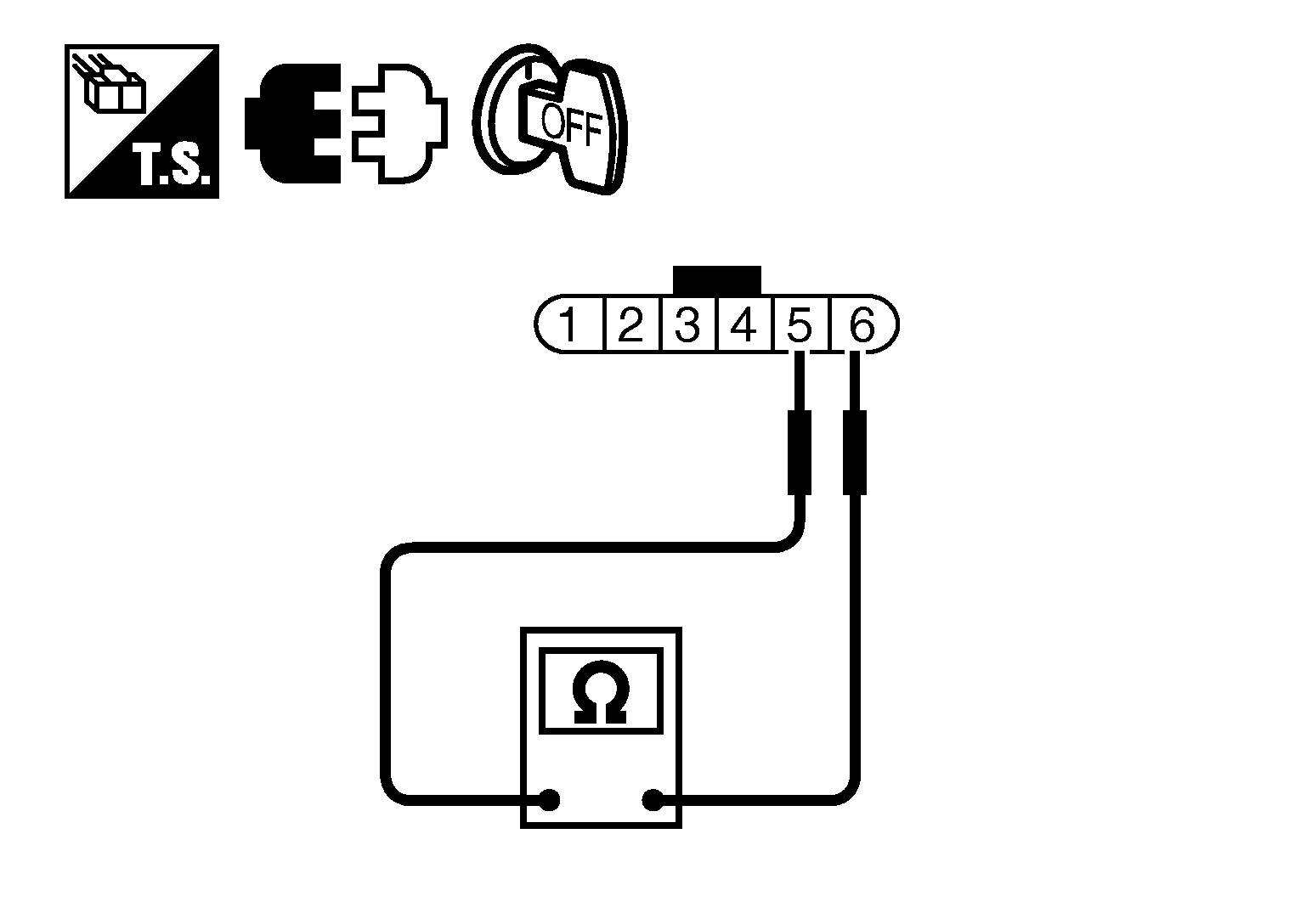

    3. Check the resistance between electric throttle control actuator terminals as per the following.
      G04147671Courtesy of NISSAN NORTH AMERICA, INC.

      Electric throttle control actuator

      Resistance

      (Approx.)

      +

      -

      Terminals

      5

      6

      1 - 15 Ω [at 25°C (77°F)]

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    Replace electric throttle control actuator. Refer to Removal and Installation .
