Removal and Installation
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
Removal
- Disconnect the negative battery terminal. Refer to Removal and Installation .
- Remove the front wheel and tire (RH) using power tool. Refer to Adjustment .
- Remove the front fender protector (RH). Refer to Removal and Installation .
- Remove the exhaust manifold heat shield bolts and reposition the heat shield.
- Remove starter cover bolts and starter cover.

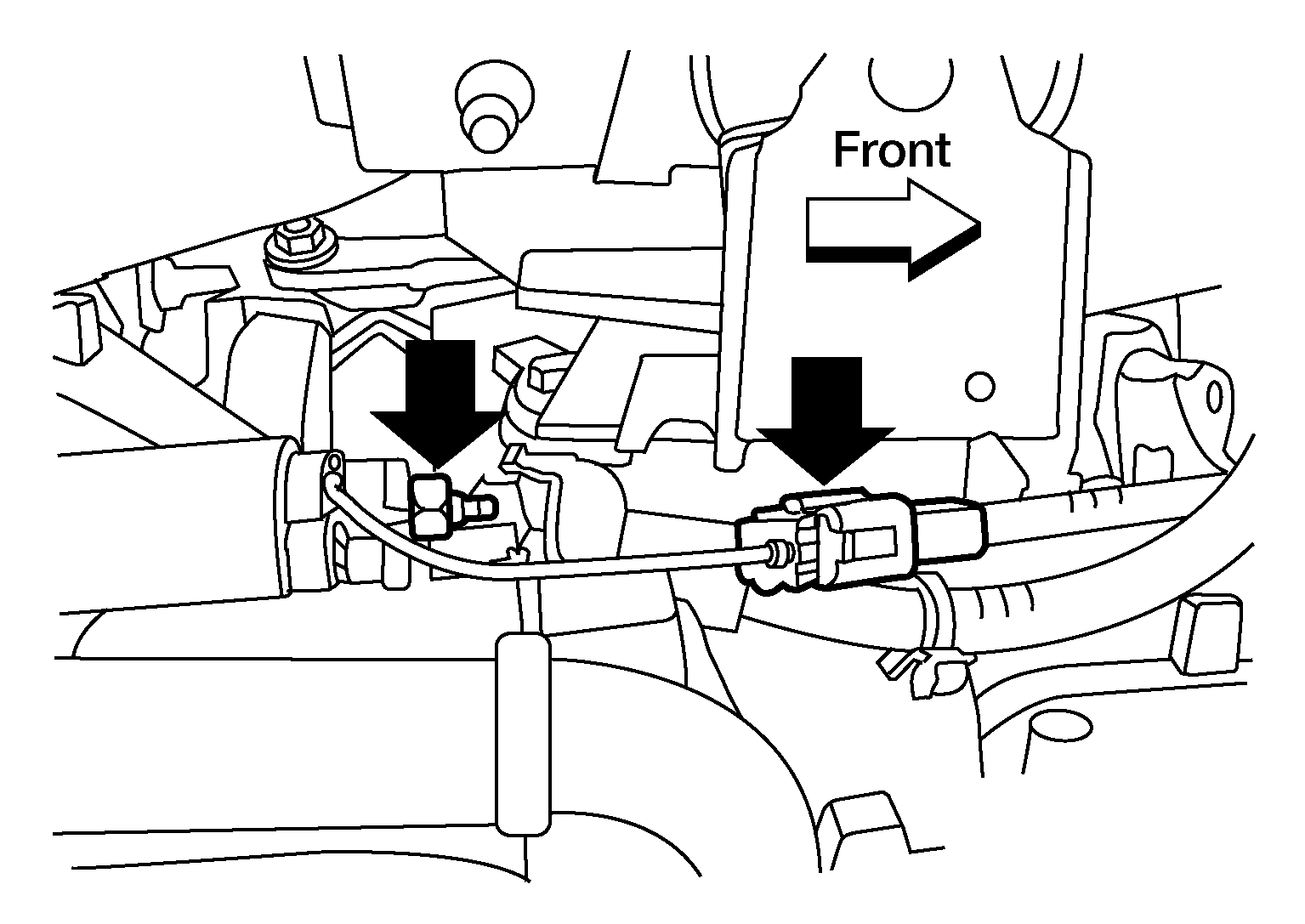

- Disconnect terminal "S" connector and terminal "B" nut.
- Remove the two starter bolts using power tool.
- Remove the starter.
Installation
Installation is in the reverse order of removal.
- Tighten the front wheel and tire (RH) to specification. Refer to Adjustment .
CAUTION:
Tighten terminal "B" nut carefully.
