Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

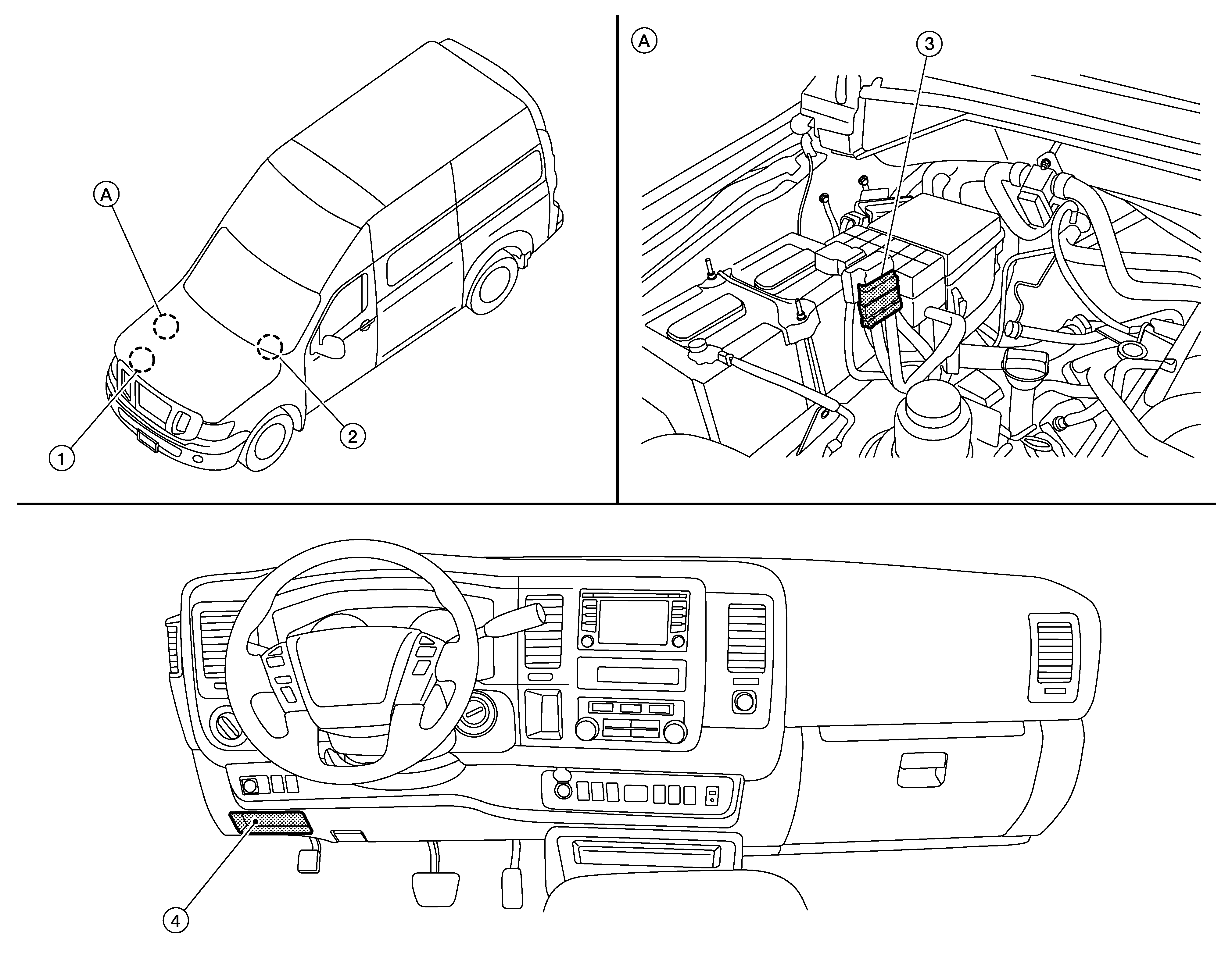

GNSAWMIA0026Z-026Courtesy of NISSAN NORTH AMERICA, INC.

1.

Generator

2.

Combination meter (charge warning lamp)

3.

Fusible link box (battery)

4.

Fuse block

A.

Engine room (RH)
