Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

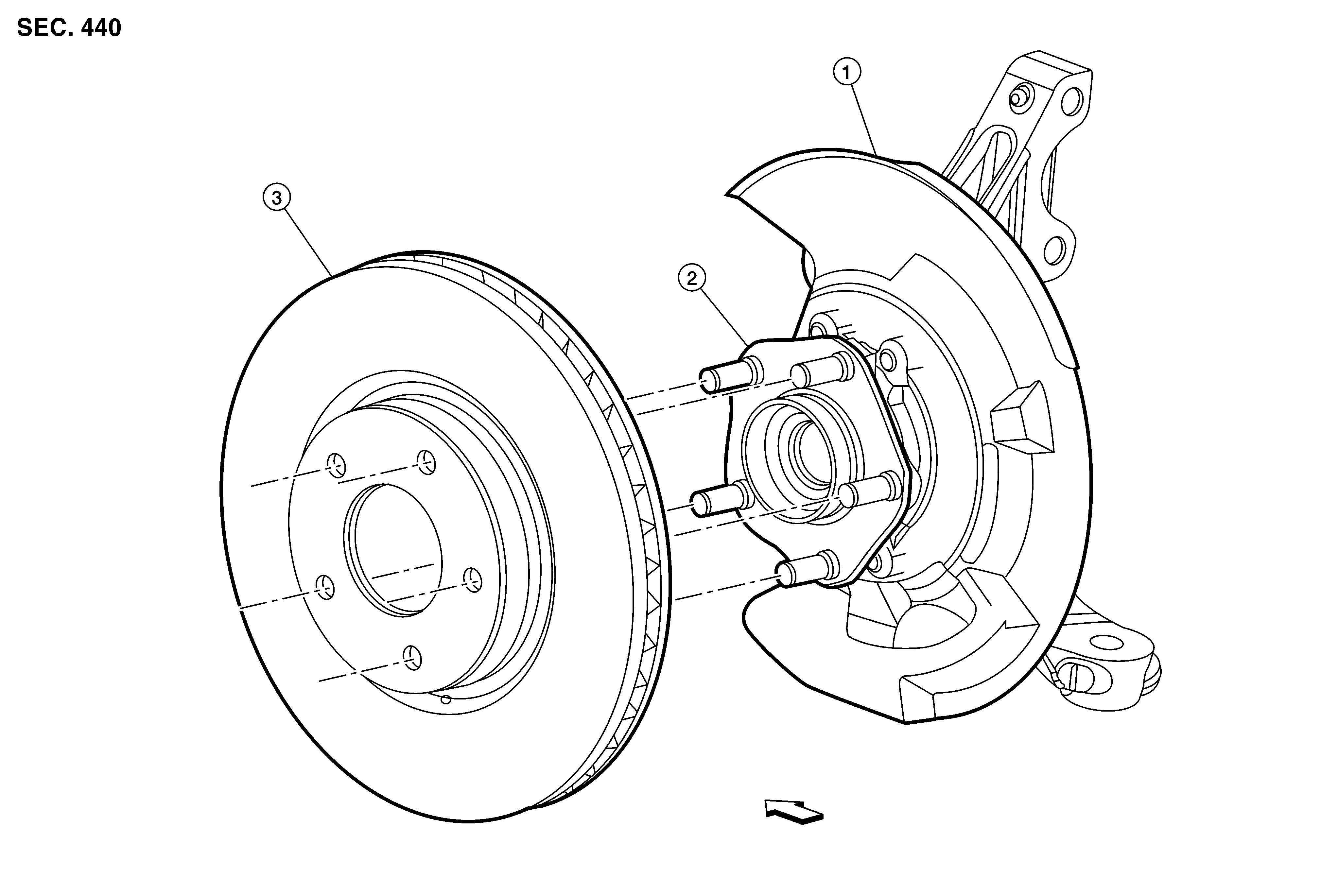

GNSALFIA0578Z-578Courtesy of NISSAN NORTH AMERICA, INC.

1.

Splash guard

2.

Front wheel hub and bearing

3.

Front disc brake rotor

SYMBOL

Front
