Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply Molykote AS-880N grease between inner and outer shims and back of brake pads.
    CAUTION: When installing new brake pads, replace the shims and shim covers.
  2. Install inner and outer shims and shim covers to inner pad and outer pad.
    CAUTION: Do not get grease on the inner and outer pad friction surfaces.

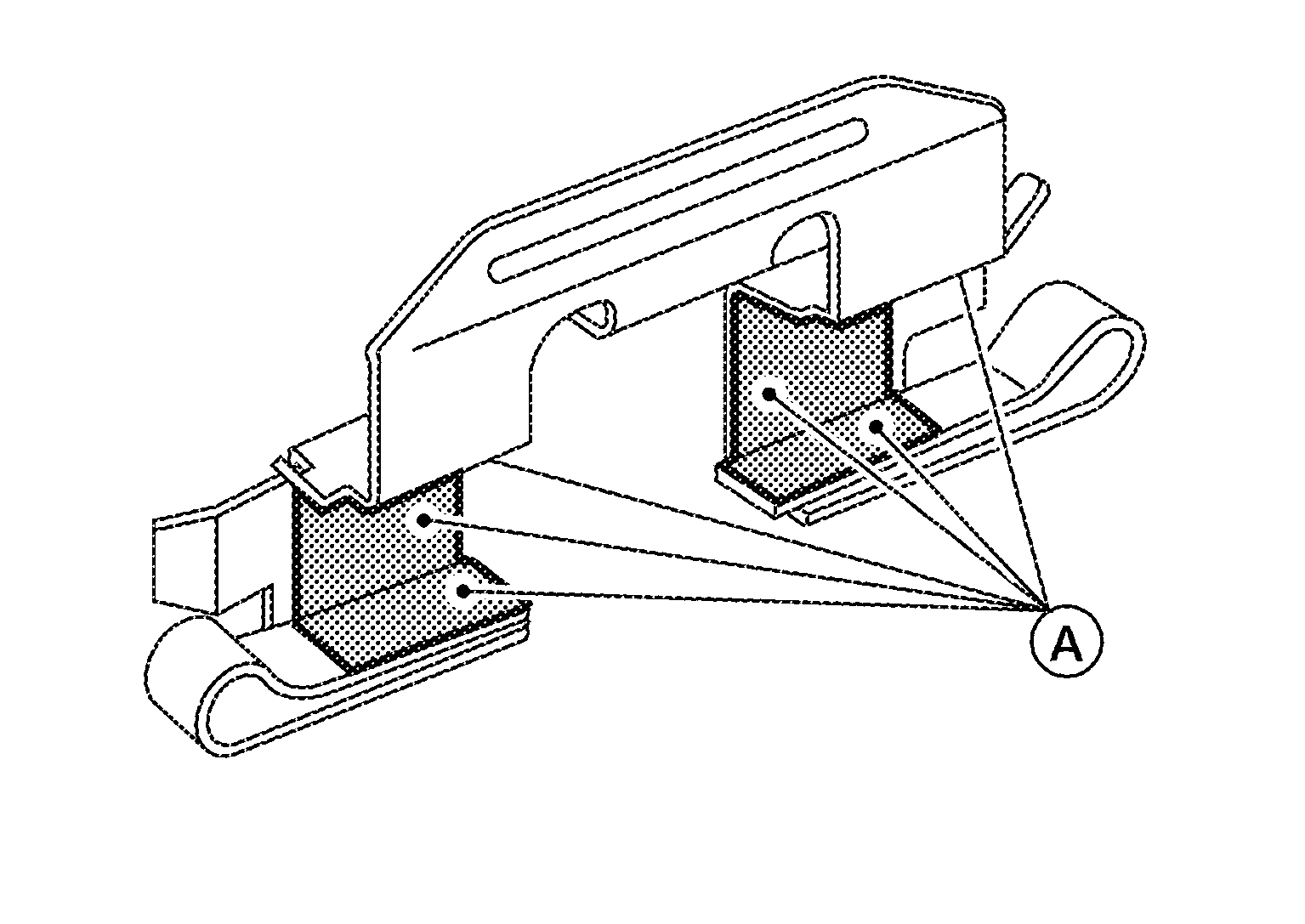

  3. Apply Molykote 7439 grease (A) to pad retainer and attach pad retainer to torque member.
    GNSDB115423Courtesy of NISSAN NORTH AMERICA, INC.
  4. Install assembled inner and outer shims, shim covers, pads and anti-rattle clips to torque member.
    CAUTION: Do not get grease on the inner and outer pad or rotor friction surfaces.
  5. Using a suitable tool, press pistons into brake caliper.
    CAUTION: Do not damage the piston boot.
  6. Install brake caliper to torque member.
  7. Install slide pin bolts and tighten to specification.
  8. Install front wheels and tires. Refer to Removal and Installation .
  9. Check brake fluid level and refill as necessary. Refer to Inspection .
