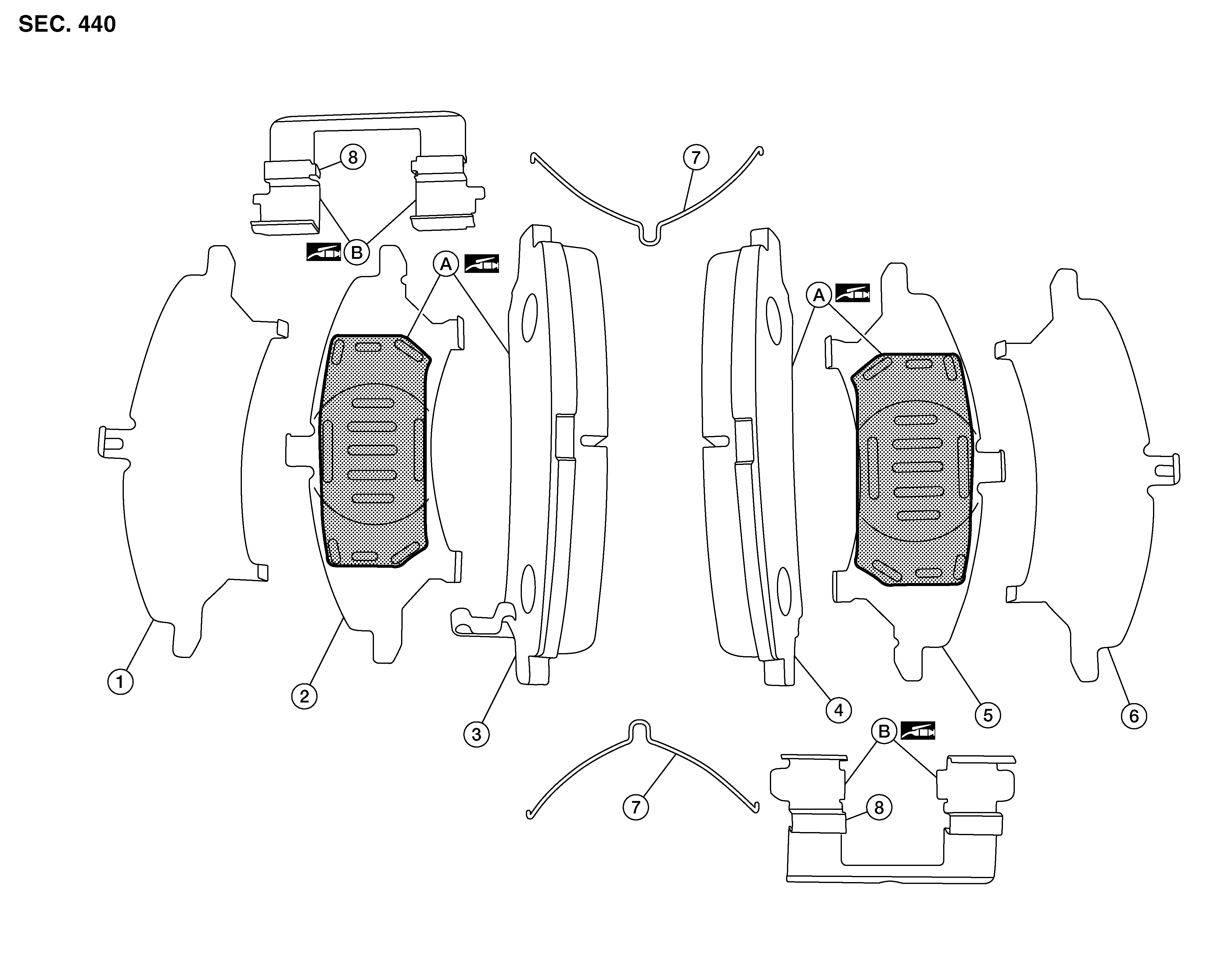

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Inner shim cover
|
2.
|
Inner shim
|
3.
|
Inner pad
|
|
4.
|
Outer pad
|
5.
|
Outer shim
|
6.
|
Outer shim cover
|
|
7.
|
Anti-rattle clips
|
8.
|
Pad retainers
|
A.
|
Molykote AS-880N grease
|
|
B.
|
Molykote 7439 grease
|
