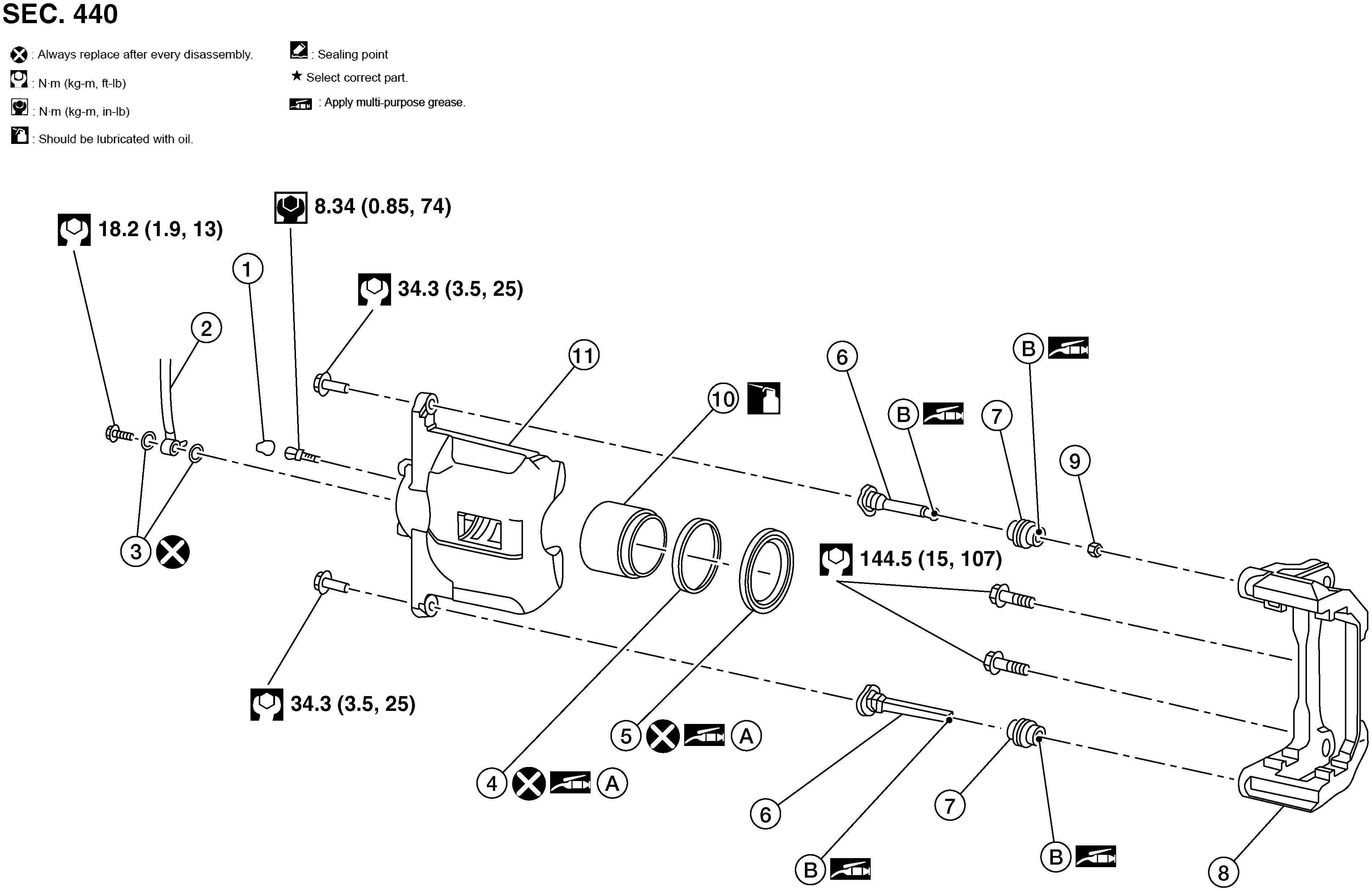

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Bleeder cap
|
2.
|
Brake hose
|
3.
|
Copper sealing washers
|
|
4.
|
Piston seal
|
5.
|
Piston boot
|
6.
|
Slide pin
|
|
7.
|
Slide pin boot
|
8.
|
Torque member
|
9.
|
Bushing
|
|
10.
|
Piston
|
11.
|
Brake caliper body
|
A.
|
Rubber grease
|
|
B.
|
Niglube Rx-2
|
|
|
Apply brake fluid.
|
