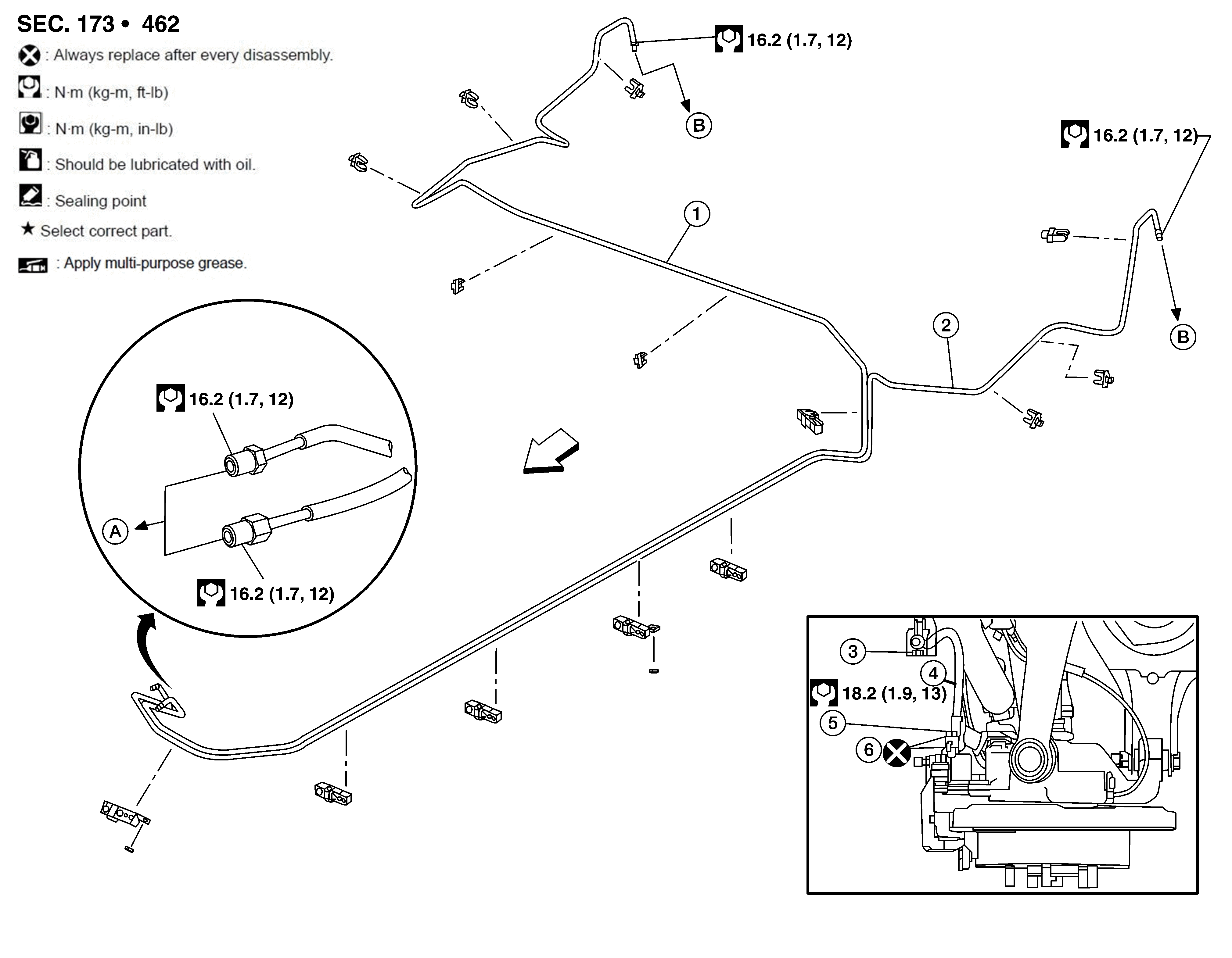

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Rear brake pipe (RH)
|
2.
|
Rear brake pipe (LH)
|
3.
|
Lock plate
|
|
4.
|
Rear brake hose
|
5.
|
Union bolt
|
6.
|
Copper sealing washers
|
|
A.
|
To brake pipe connector
|
B.
|
To rear brake hose
|
|
Front
|
