Inspection After Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check the following items and replace the brake pedal if necessary.

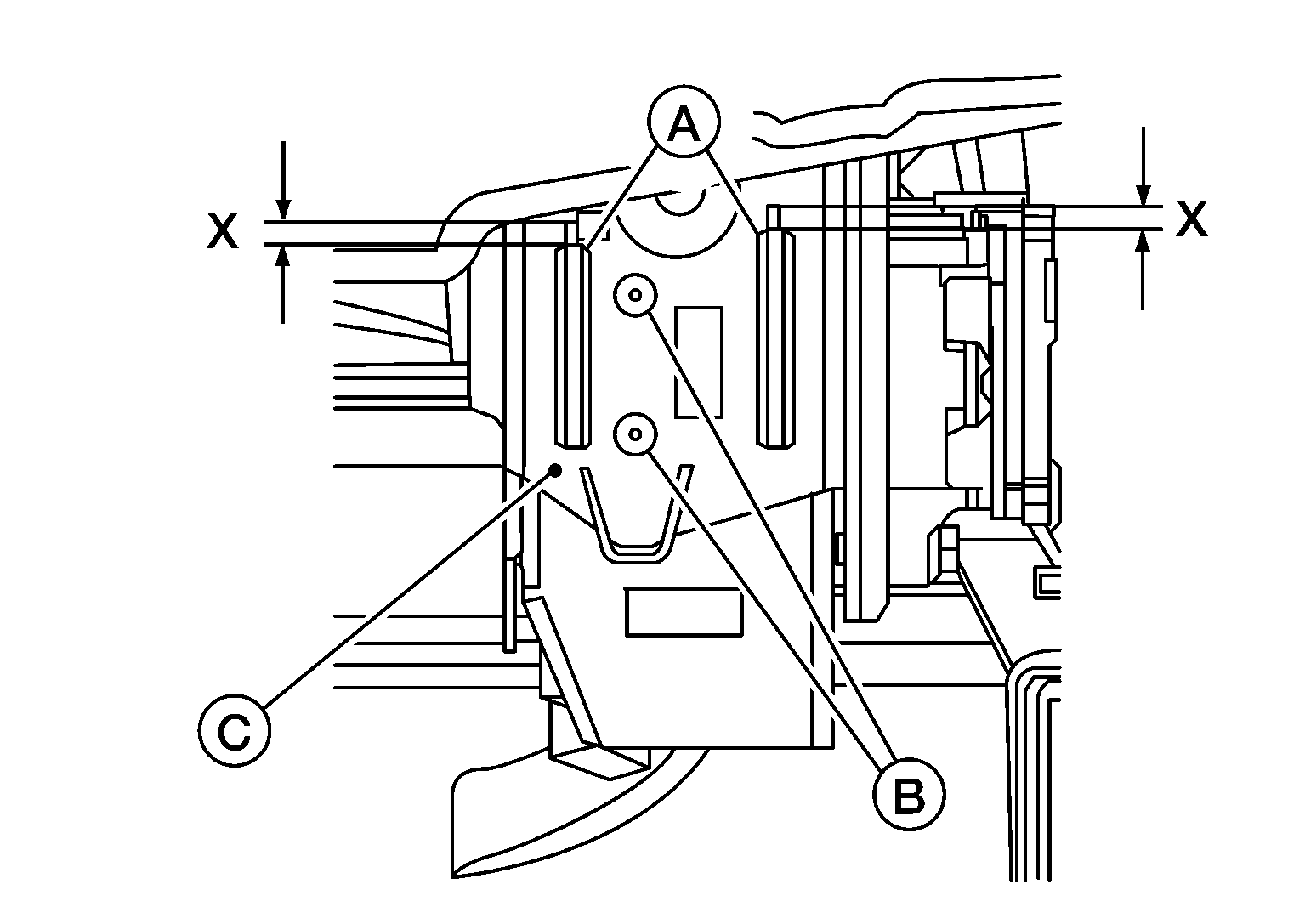

Courtesy of NISSAN NORTH AMERICA, INC.

Check brake pedal upper rivet (B) for deformation.
Check brake pedal for bend, damage, and cracks on welded parts.

Check overlap distance (X) between sub-bracket (A) and slide plate (C).

Overlap distance (X) between sub-bracket (A) and slide plate (C)

: Refer to Brake Pedal .
