Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

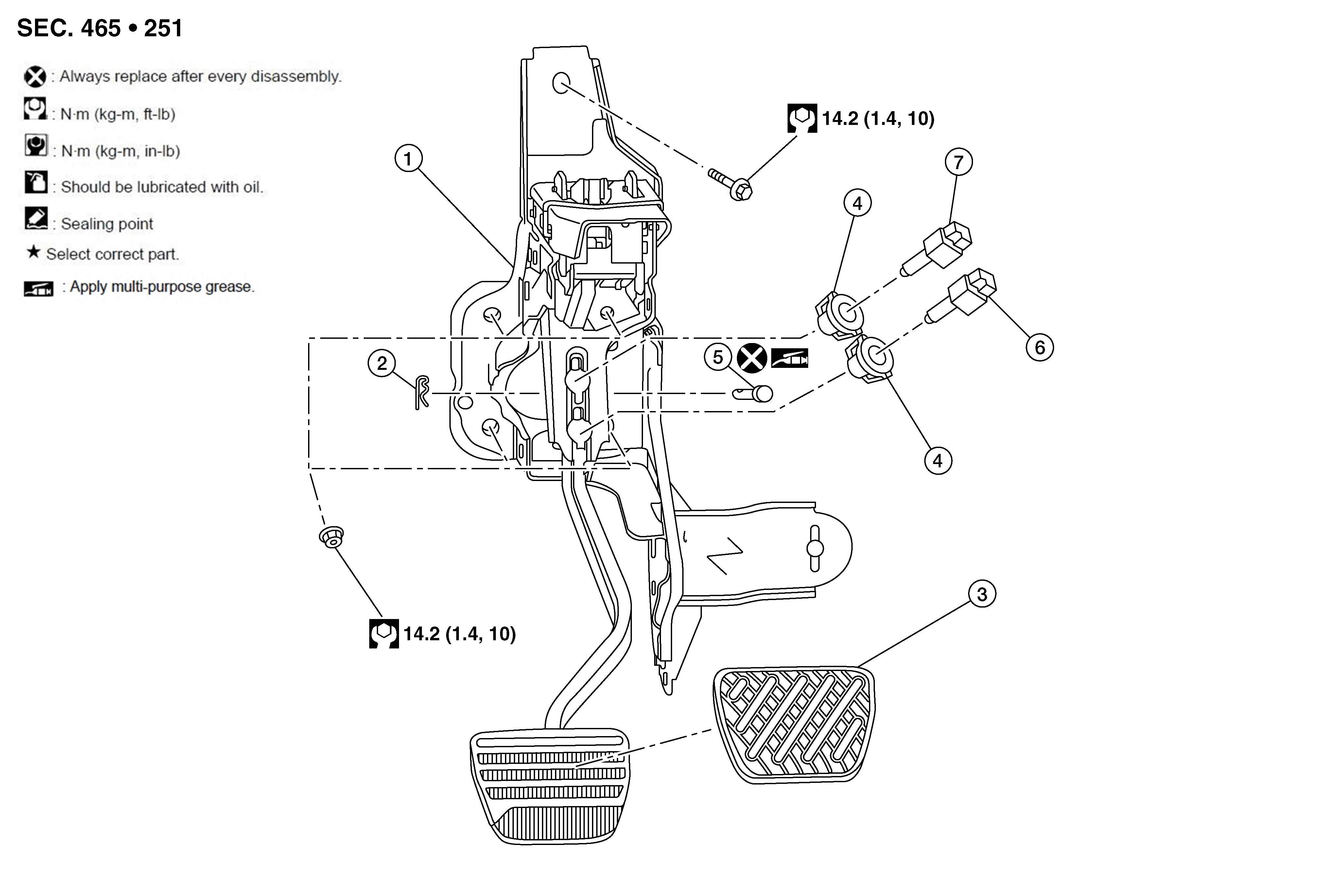

Fig 1: Brake Pedal With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Brake pedal	2.	Snap pin	3.	Brake pedal pad
4.	Clip	5.	Clevis pin	6.	Stop lamp switch
7.	Brake pedal position switch
