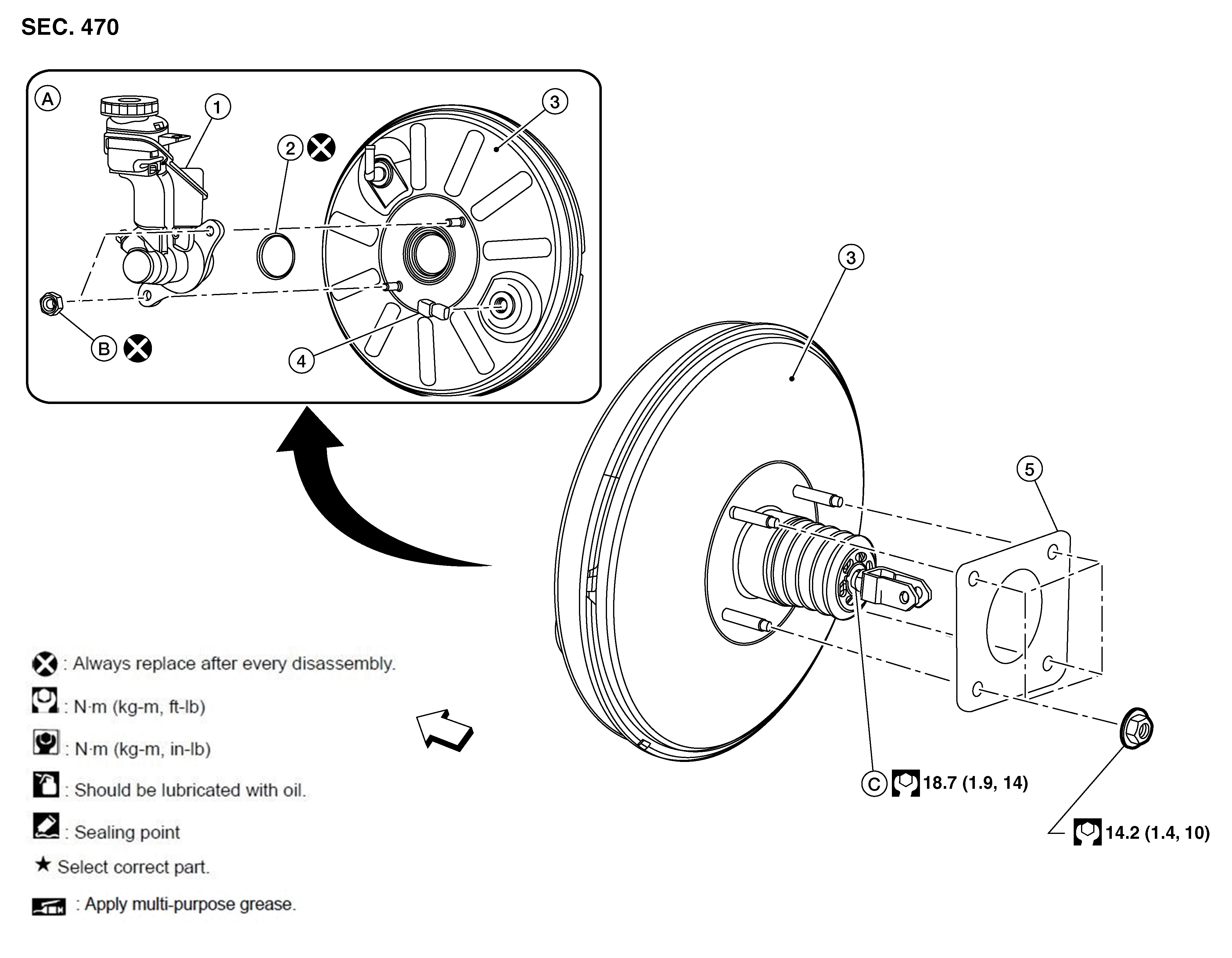

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Master cylinder |
2. |
O-ring |
3. |
Brake booster |
|
4. |
Brake booster pressure sensor |
5. |
Gasket |
A. |
Refer to Removal and Installation . |
|
B. |
Master cylinder nut |
C. |
Clevis lock nut |
