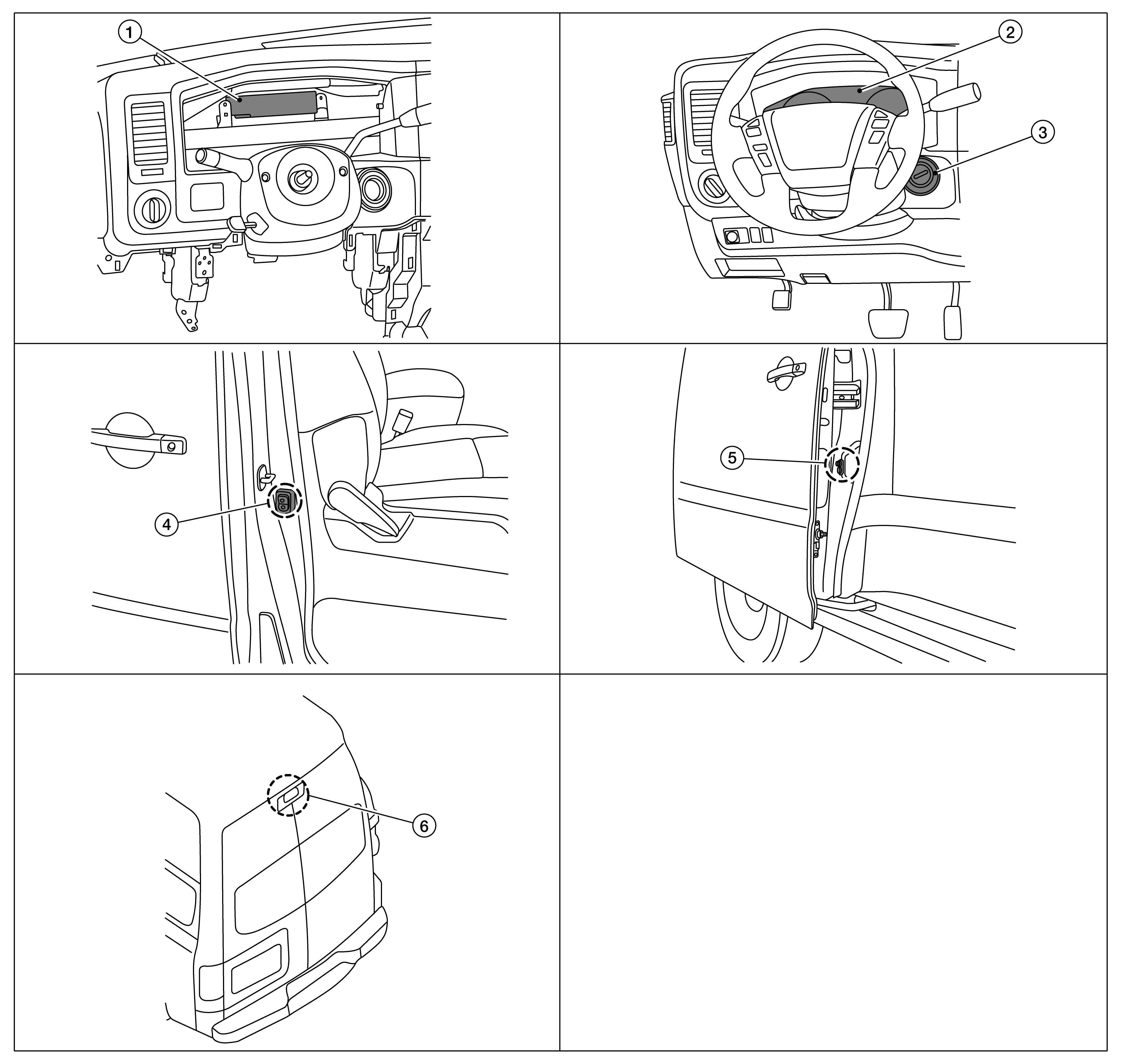

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
BCM (view with steering wheel and combination meter removed)
|
2.
|
Combination meter
|
3.
|
Key switch
|
|
4.
|
Front door switch RH/LH (RH shown)
|
5.
|
Sliding door switch
|
6.
|
Back door switch upper RH (cargo van shown, passenger van similar)
|
