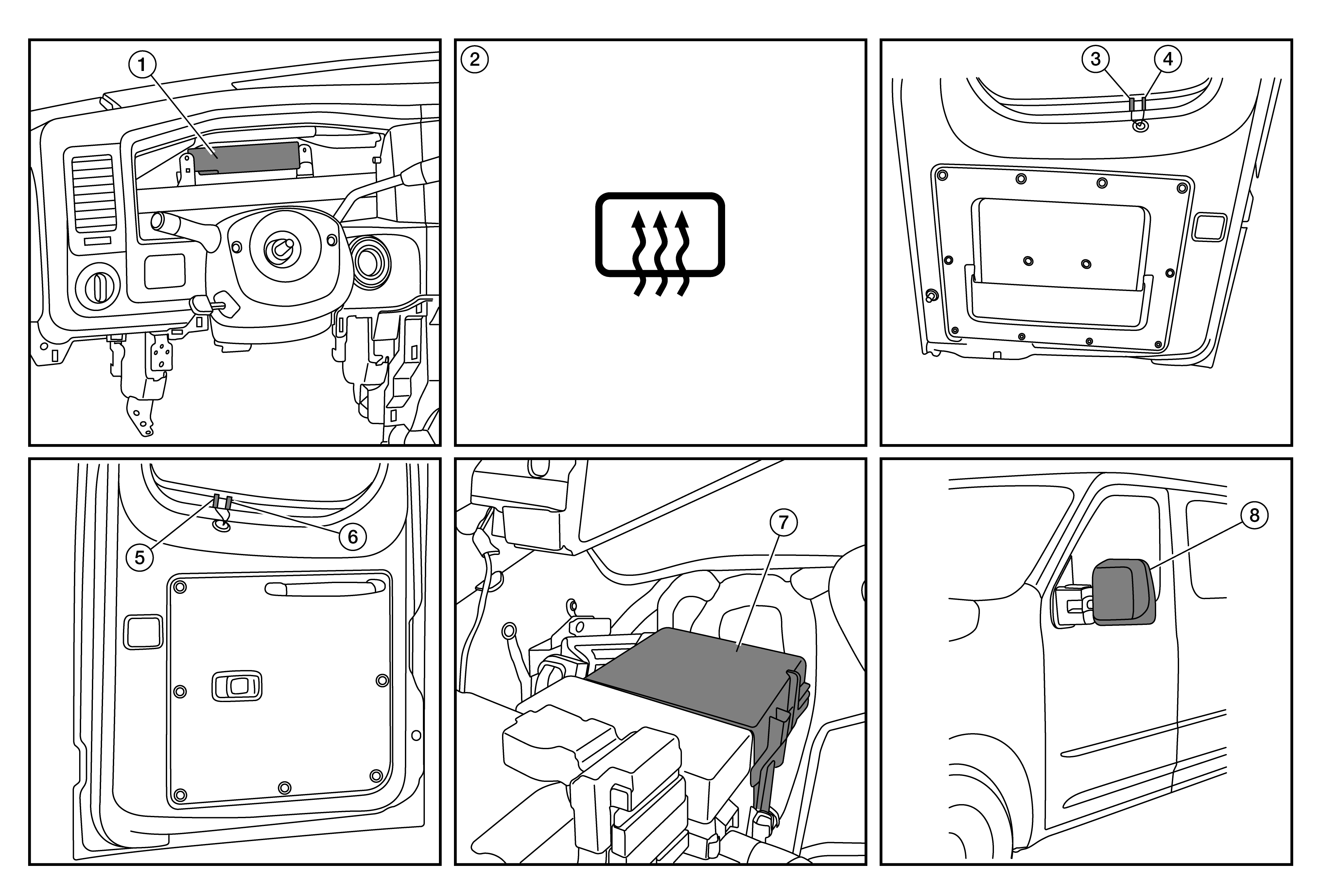

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
BCM (view with steering wheel and combination meter removed) |
2. |
Rear window defogger switch |
3. |
Rear window defogger power connector, LH |
|
4. |
Rear window defogger ground connector, LH |
5. |
Rear window defogger power connector, RH |
6. |
Rear window defogger ground connector, RH |
|
7. |
IPDM E/R (rear window defogger relay, heated mirror relay if equipped) |
8. |
Door Mirror LH (RH similar) |
