Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Remove disc brake rotor. Refer to Removal and Installation .

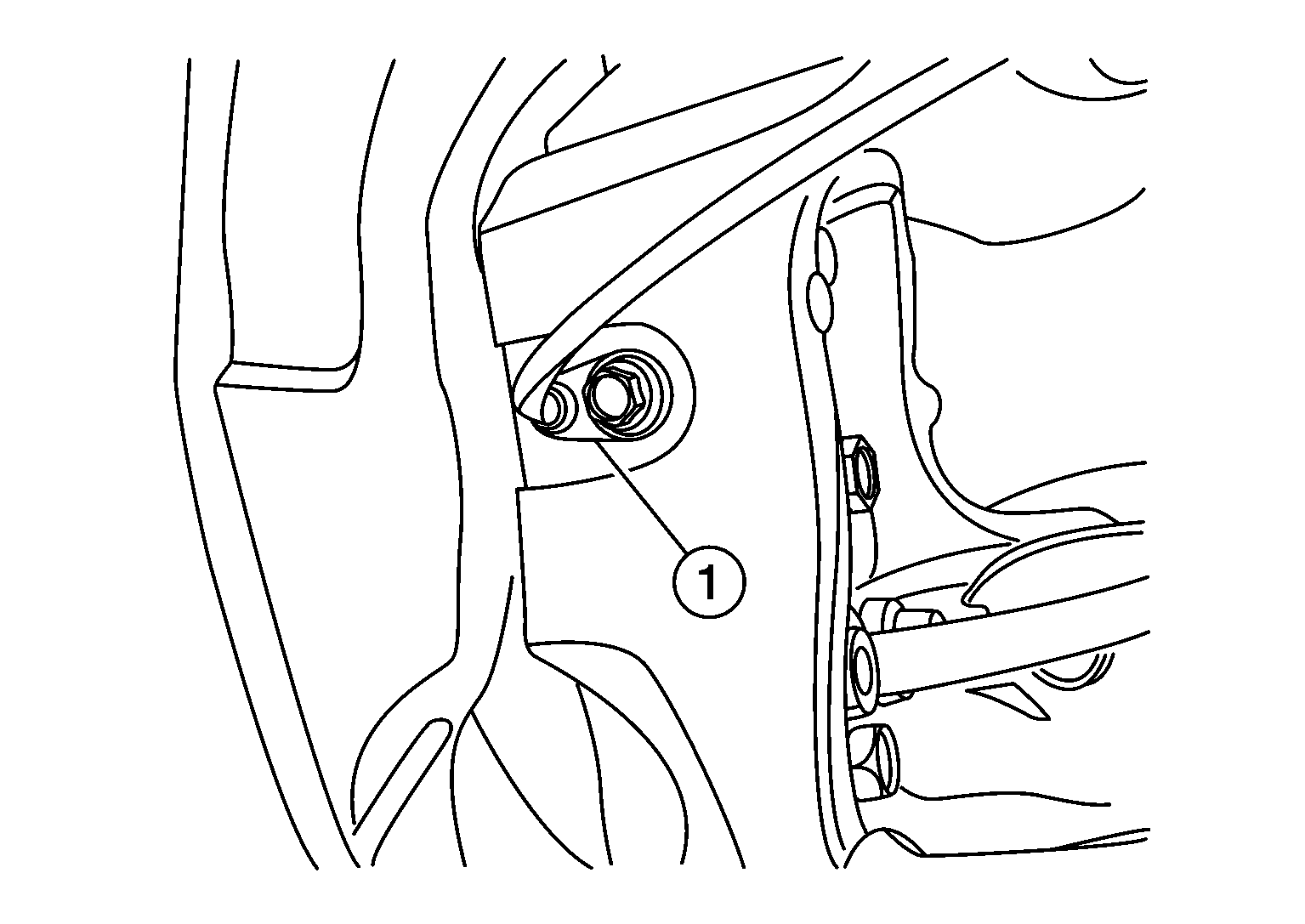

Remove the rear wheel sensor (1) from the knuckle and place it aside.

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Pull out rear wheel sensor being careful to turn it as little as possible. Do not pull on wheel sensor harness.
- Failure to remove rear wheel sensor from rear knuckle may result in damage to rear wheel sensor.
Remove the bolts (A) from the wheel hub and bearing.

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the wheel hub and bearing from knuckle.
Remove the wheel hub and bearing dust cap.
If necessary, remove wheel studs (1) from wheel hub and bearing using a suitable tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Remove wheel studs only when necessary.
- Do not hammer wheel studs or damage to wheel hub and bearing may occur.
- Pull out wheel studs in a direction perpendicular to wheel hub and bearing.
