Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

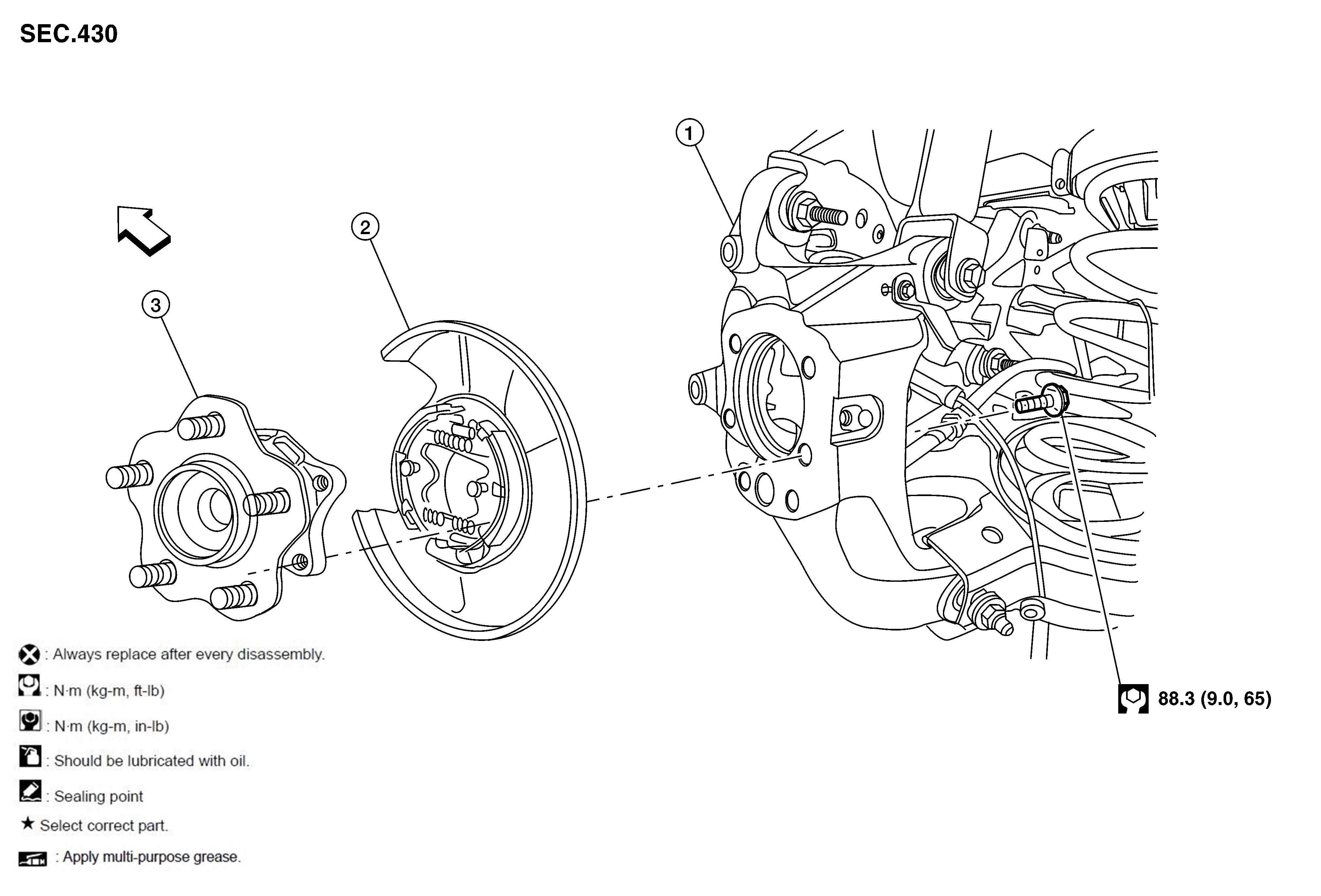

Fig 1: Wheel Hub With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Knuckle	2.	Back plate	3.	Wheel hub and bearing
	Front
