Rear Wheel Hub

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

If the following conditions are not met or not within specification, replace the wheel hub and bearing.

Check that the wheel hub and bearing rotates smoothly.

Check wheel hub and bearing axial end play.

Axial end play

: Refer to Wheel Bearing (Rear) .

Check wheel hub and bearing runout.

Courtesy of NISSAN NORTH AMERICA, INC.

Runout

: Refer to Wheel Bearing (Rear) .

NOTE:

Make sure the area between the disc brake rotor and wheel hub and bearing are free from dirt or debris.

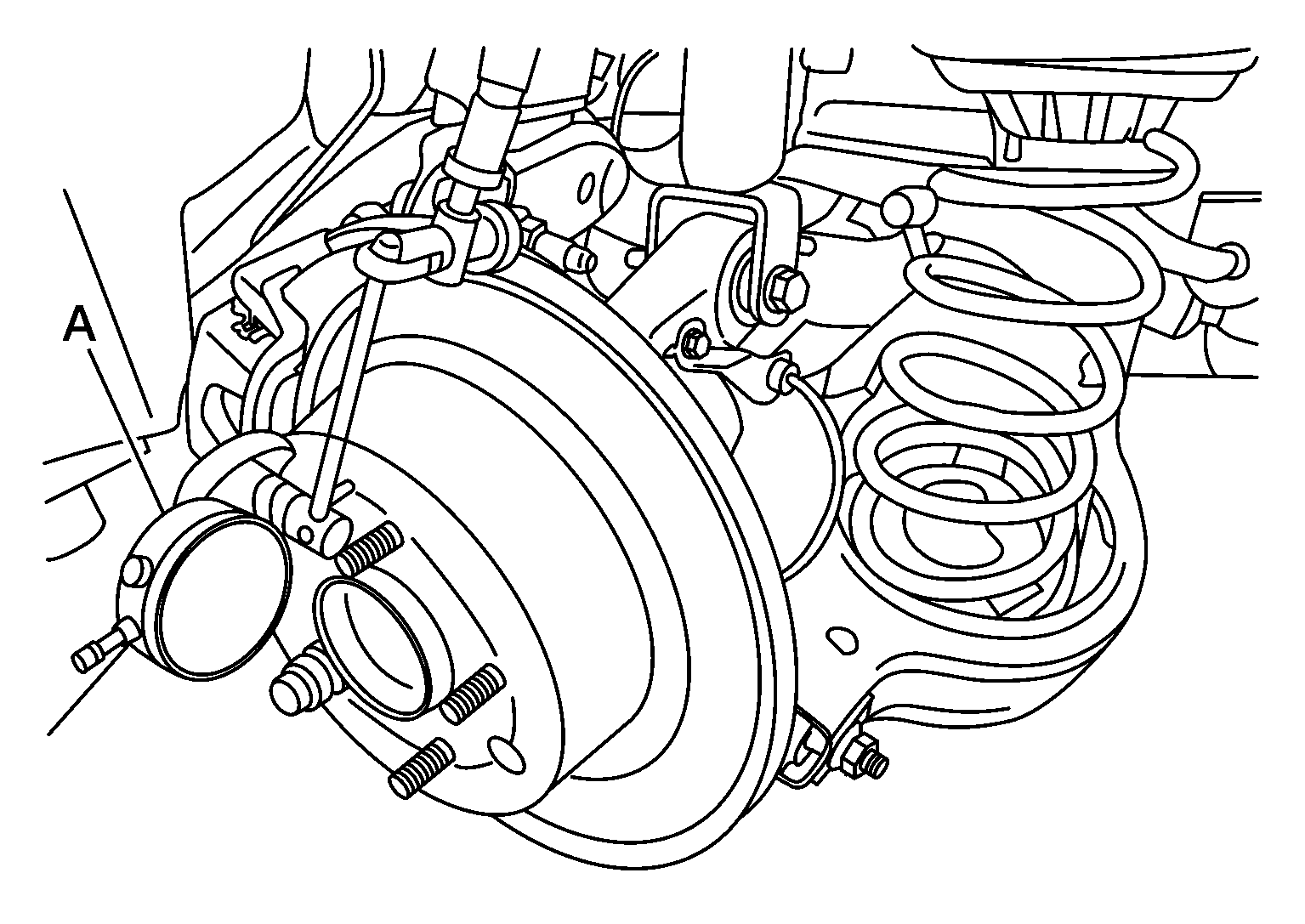

Place the dial gauge (A) on a smooth surface, free from scratches or dents.
Make sure the disc brake rotor is securely fastened to the wheel hub and bearing.
