Special Service Tool

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD and 2018 Nissan NV2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

The actual shape of the tools may differ from those illustrated here.

Tool number (TechMate No.) Tool name		Description
KV10111100 (J-37228) Seal cutter	Courtesy of NISSAN NORTH AMERICA, INC.	Removing steel oil pan and front cover

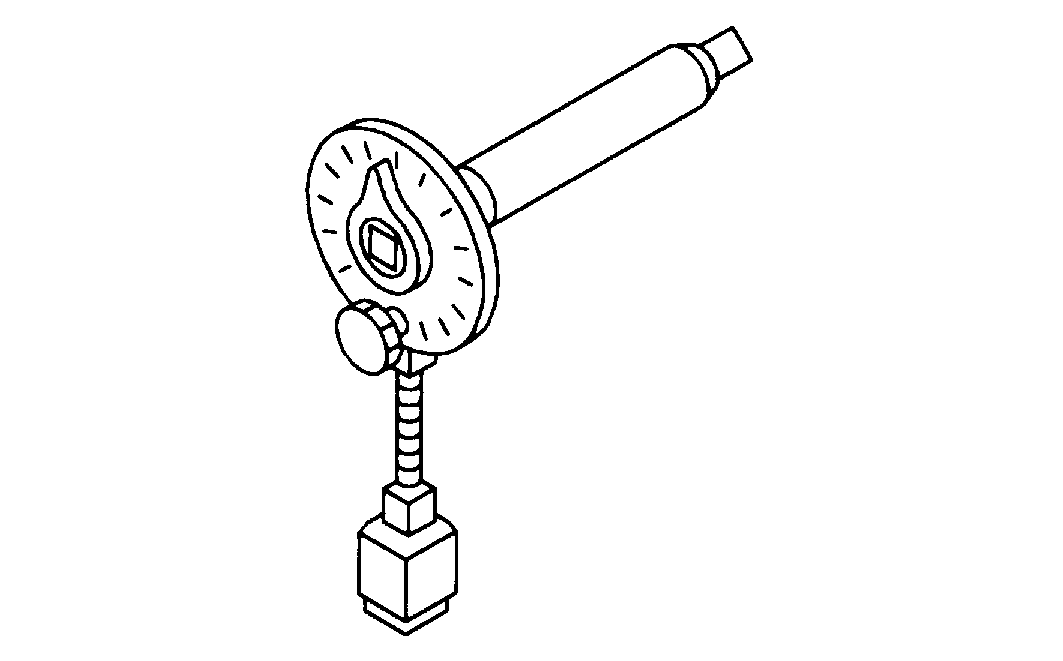

KV10112100 (BT8653-A) Angle wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Tightening bolts for bearing cap, cylinder head, etc.

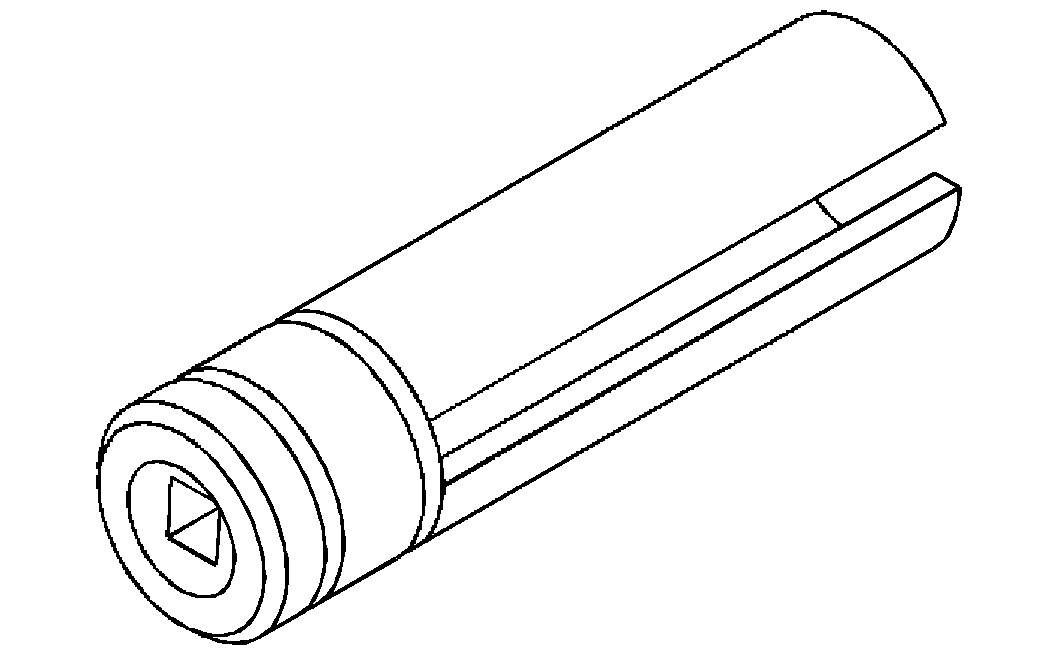

KV10117100 (J-36471-A)- Heated oxygen sensor wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Loosening or tightening air fuel ratio sensor 1 and exhaust temperature sensor

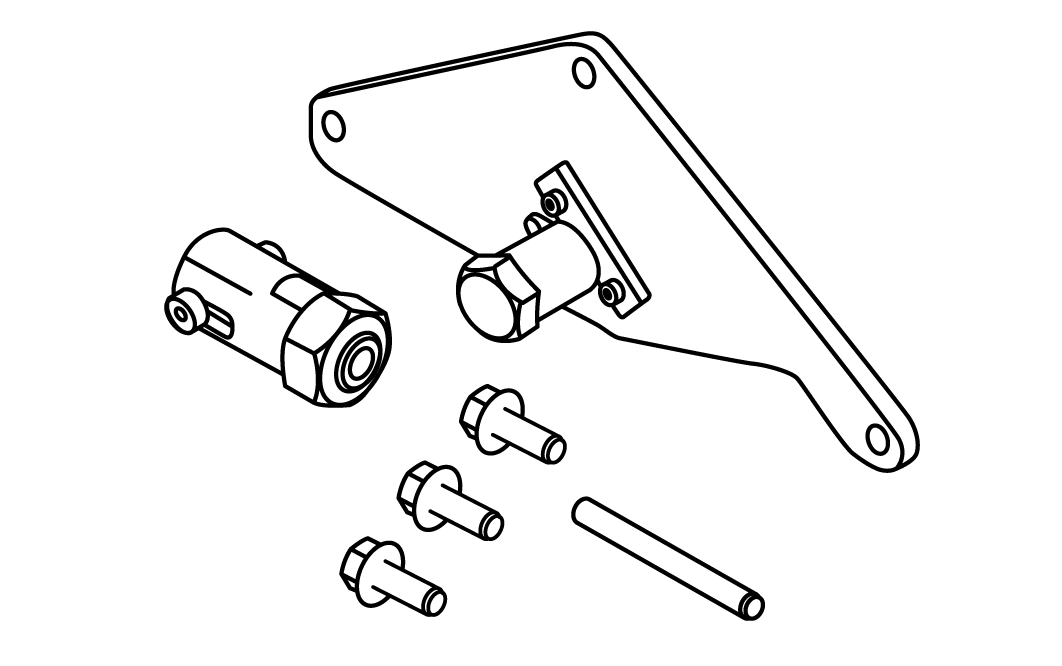

- (J-51269) Oil jet installer/remover - (J-51269-1) Remover puller - (J-51269-2) Alignment fixture	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing oil jet (bank 2)

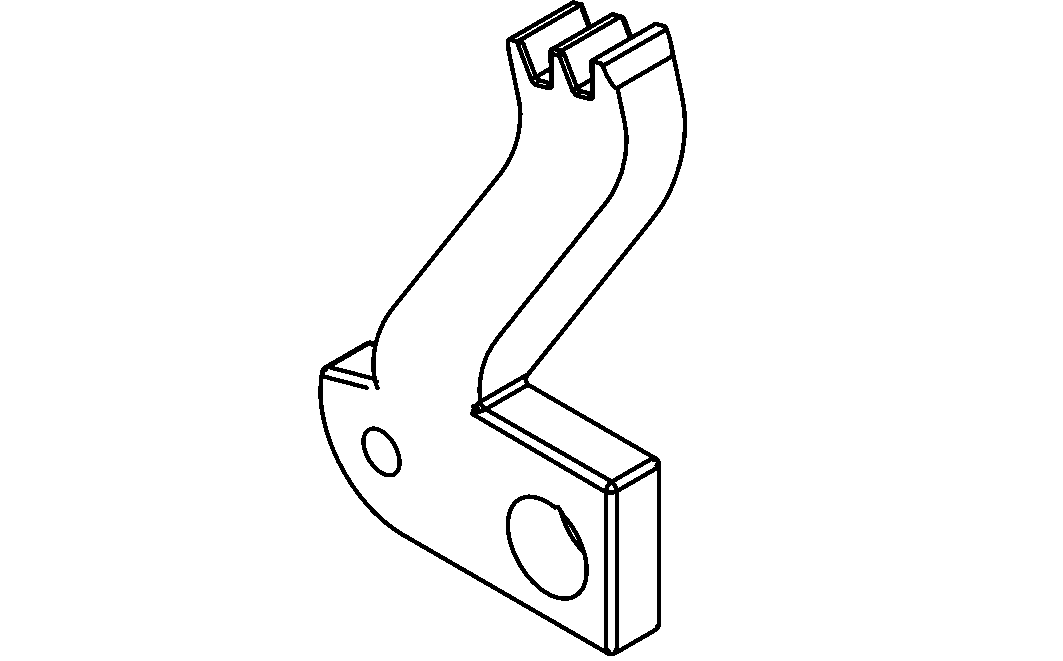

KV10120100 (J-47245) Ring gear stopper	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing crankshaft pulley
- (J-45488) Quick connector release	Courtesy of NISSAN NORTH AMERICA, INC.	Removing fuel tube quick connectors in engine room ( Part No. 16441 6N210)
KV101197S0 (J-50364) Injector seal drift set KV10119730 (-) Seal installer KV10119710 (-) Drift KV10119720 (-) Seal guide	Courtesy of NISSAN NORTH AMERICA, INC.	Installing fuel injector seal ring
- (J-48891) Spark plug wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Removing and installing spark plug
- (J-43897-18) Oxygen sensor thread cleaner	Courtesy of NISSAN NORTH AMERICA, INC.	Reconditioning the exhaust system threads before installing a new heated oxygen sensor (Use with anti-seize lubricant shown below.) a: J-43897-18 (18 mm dia.) for zirconia heated oxygen sensor and air fuel ratio sensor
