Removal and Installation of Rear Oil Seal: Removal

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove transmission assembly. Refer to Removal and Installation .
  2. Remove drive plate. Refer to Exploded View .

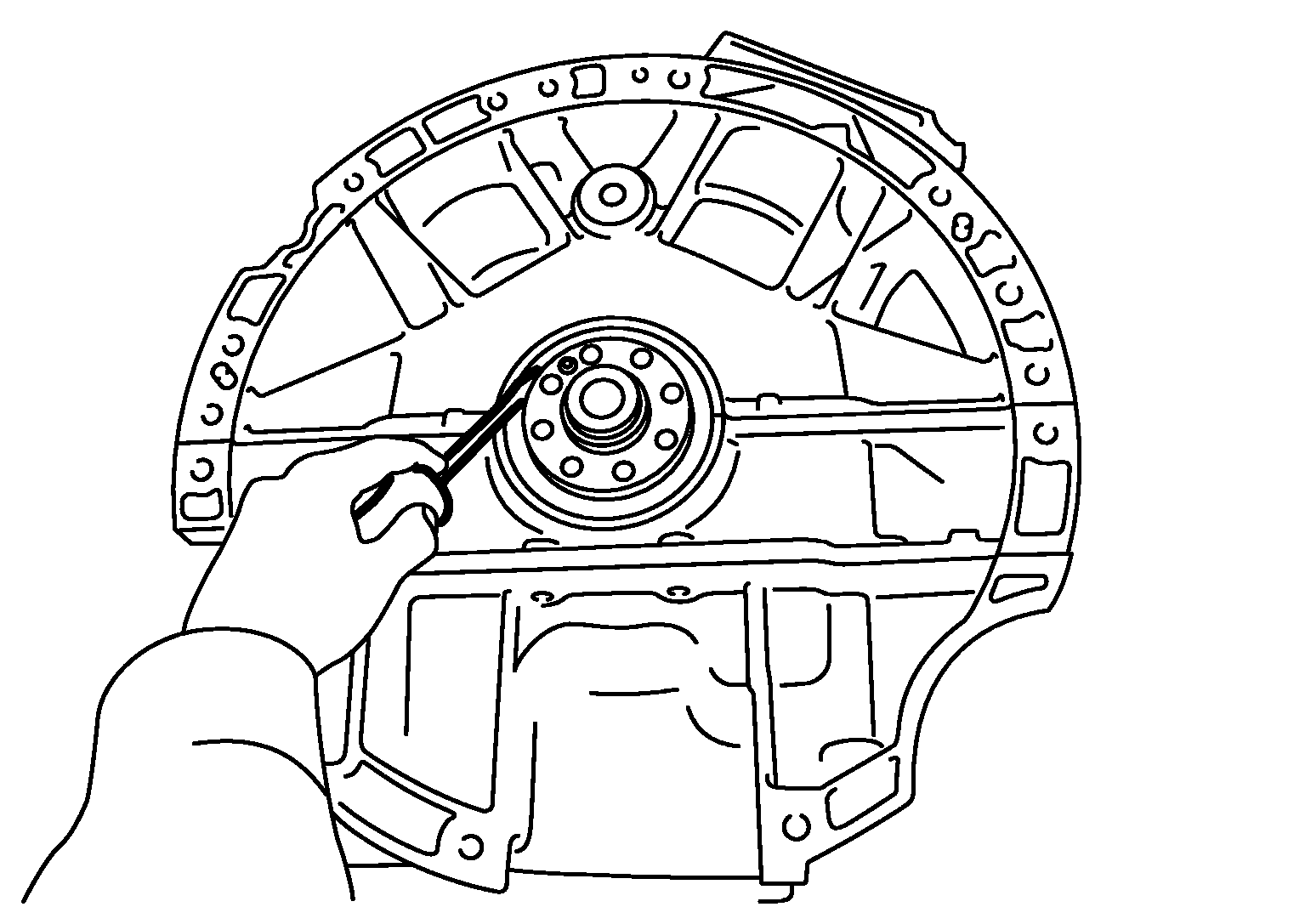

  3. Remove rear oil seal with a suitable tool.
    G04146737Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Be careful not to damage crankshaft or cylinder block.
