Commercial Service Tool

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD and 2018 Nissan NV2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Tool Name	Description
Power Tool	Courtesy of NISSAN NORTH AMERICA, INC.	Loosening bolts and nuts

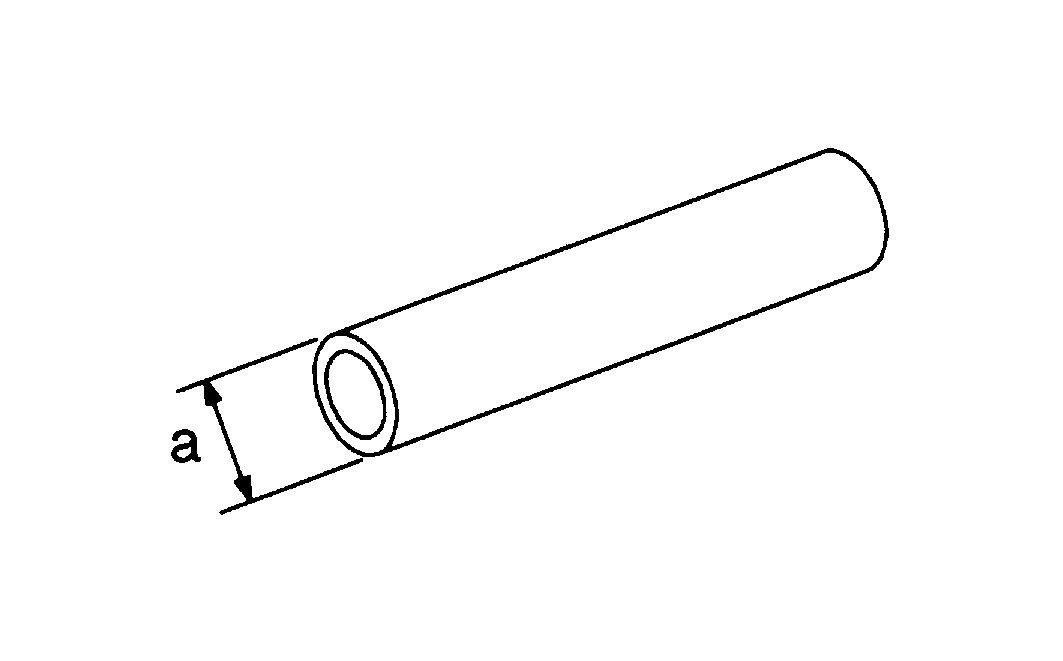

Drift a: 22 mm (0.87 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Installing manual shaft oil seals

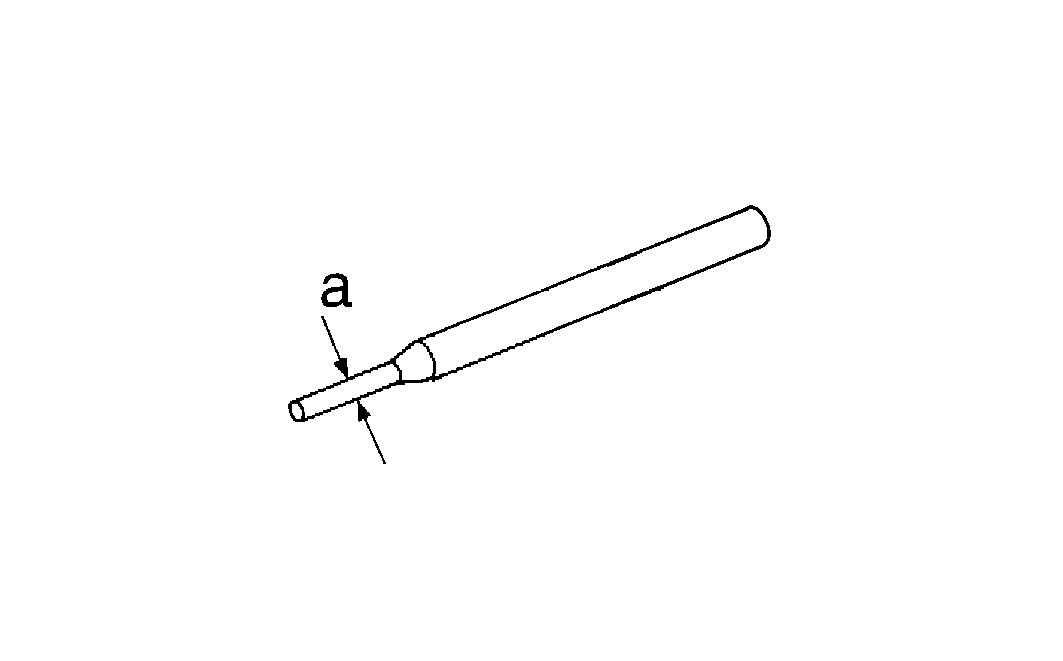

Pin punch a: 4 mm (0.16 in) dia.	Courtesy of NISSAN NORTH AMERICA, INC.	Remove retaining pin
315268E000* O-ring 310811EA5A* Charging pipe	Courtesy of NISSAN NORTH AMERICA, INC.	A/T fluid changing and adjustment

*: Always check with the Parts Department for the latest parts information.
