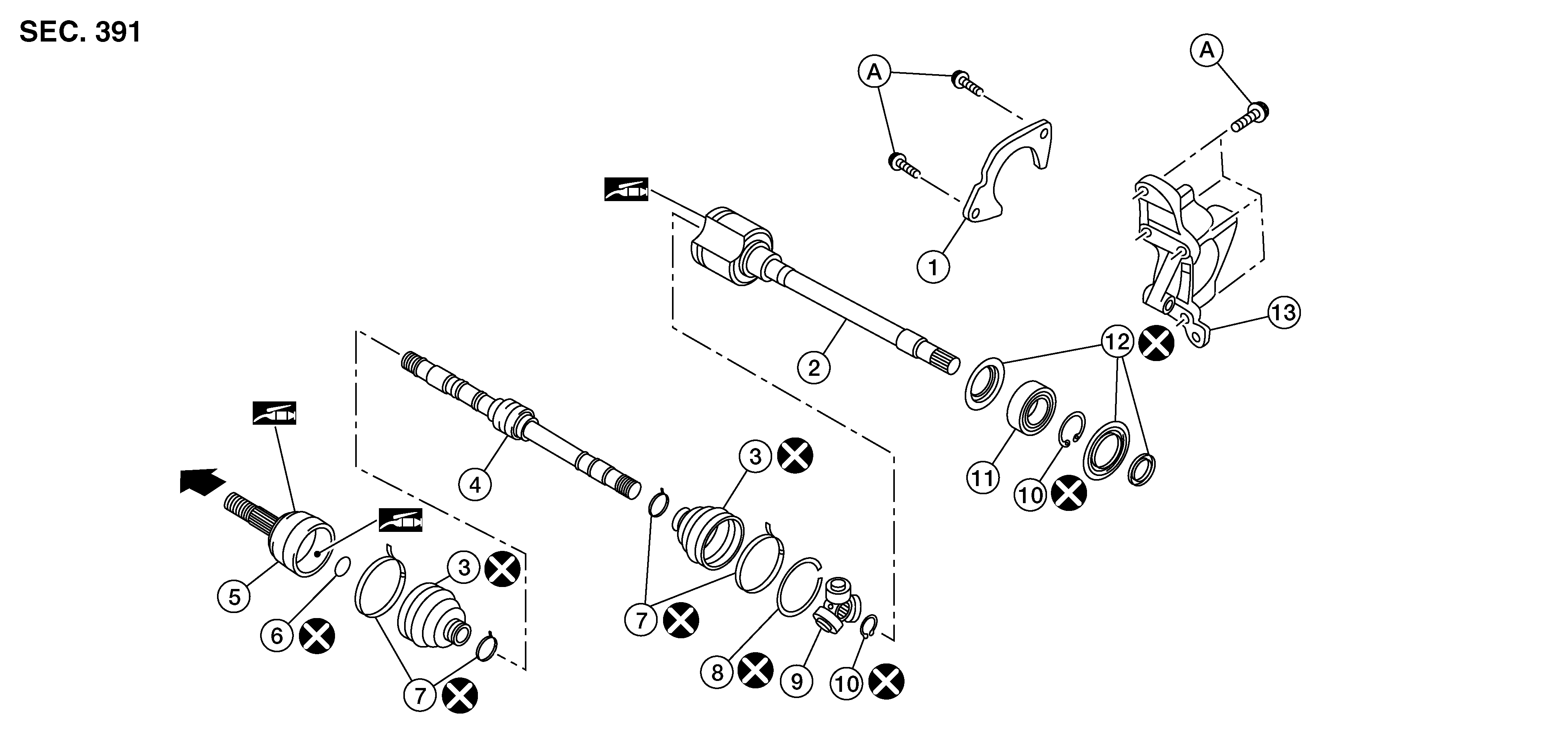

Exploded View (RH)
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Support bearing retainer |
2. |
Housing |
3. |
Boot |
|
4. |
Shaft with damper |
5. |
Joint sub-assembly |
6. |
Circular clip |
|
7. |
Boot band |
8. |
Stopper ring |
9. |
Spider assembly |
|
10. |
Snap ring |
11. |
Support bearing |
12. |
Dust shield |
|
13. |
Support bearing bracket |
A. |
Refer to Removal and Installation . |
|
Wheel side |
|
|
Fill with Genuine NISSAN Grease. |
