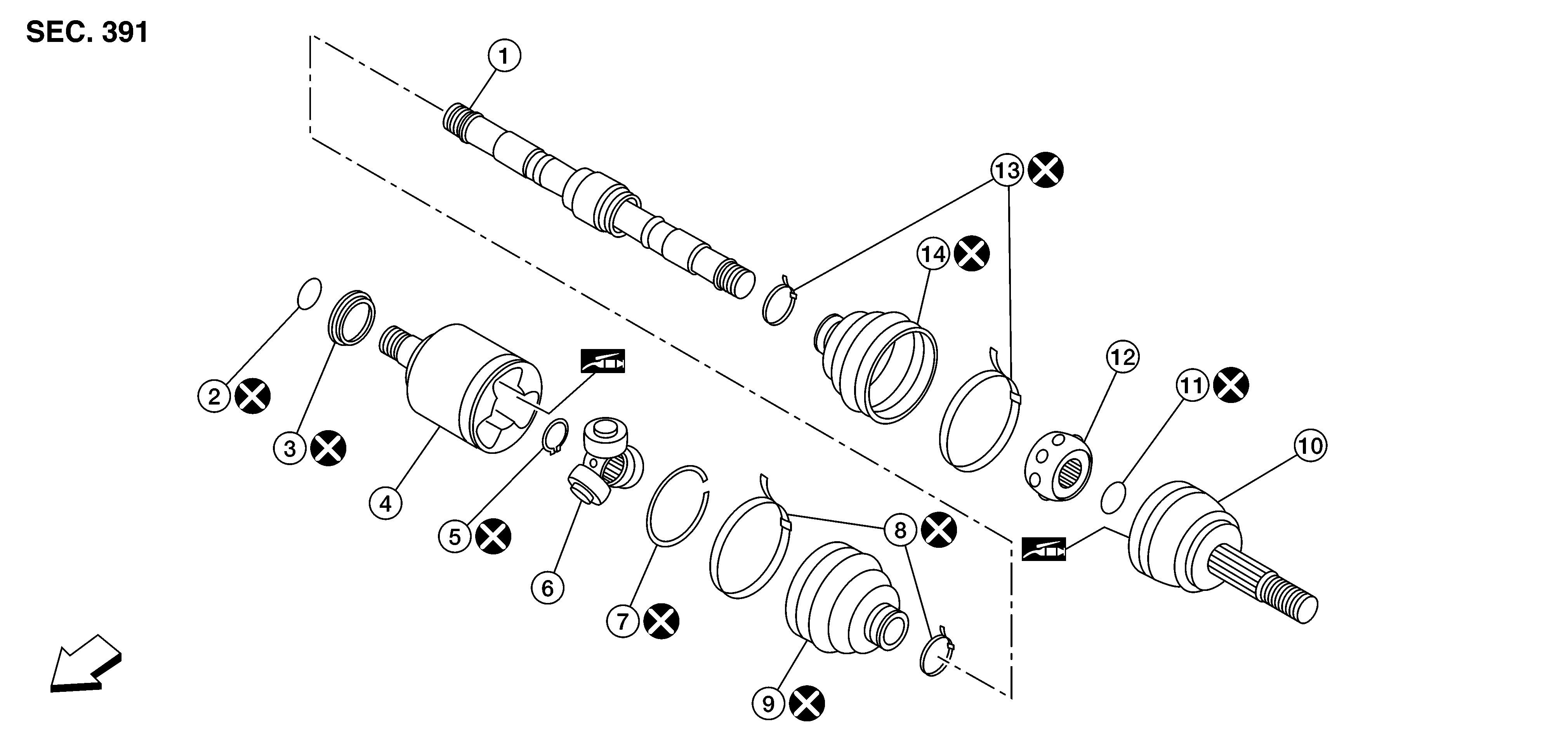

Exploded View (LH)
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Shaft
|
2.
|
Circular clip
|
3.
|
Dust shield
|
|
4.
|
Housing
|
5.
|
Snap ring
|
6.
|
Spider assembly
|
|
7.
|
Stopper ring
|
8.
|
Boot band
|
9.
|
Boot
|
|
10.
|
Joint sub-assembly
|
11.
|
Circular clip
|
12.
|
Ball cage / Steel ball / Inner race assembly
|
|
13.
|
Boot band
|
14.
|
Boot
|
|
Front
|
|
|
Fill with Genuine NISSAN Grease.
|
