Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

CAUTION:

Do not reuse wheel stud.
Do not reuse cotter pin.

Place a washer (A) as shown below, to install wheel studs (1) by using tightening force of nut (B).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Check that there is no clearance between wheel stud and wheel hub and bearing.
Clean mating surfaces of wheel hub lock nut and wheel hub and bearing.
CAUTION: Do not apply lubricating oil to these mating surfaces.
Hold wheel hub and bearing using a suitable tool. Tighten wheel hub lock nut.
CAUTION:
- Since drive shaft is assembled by press-fitting, use a torque wrench to tighten wheel hub lock nut. Do not use a power tool.
- Too much torque causes axle noise. Too little torque causes wheel bearing looseness.

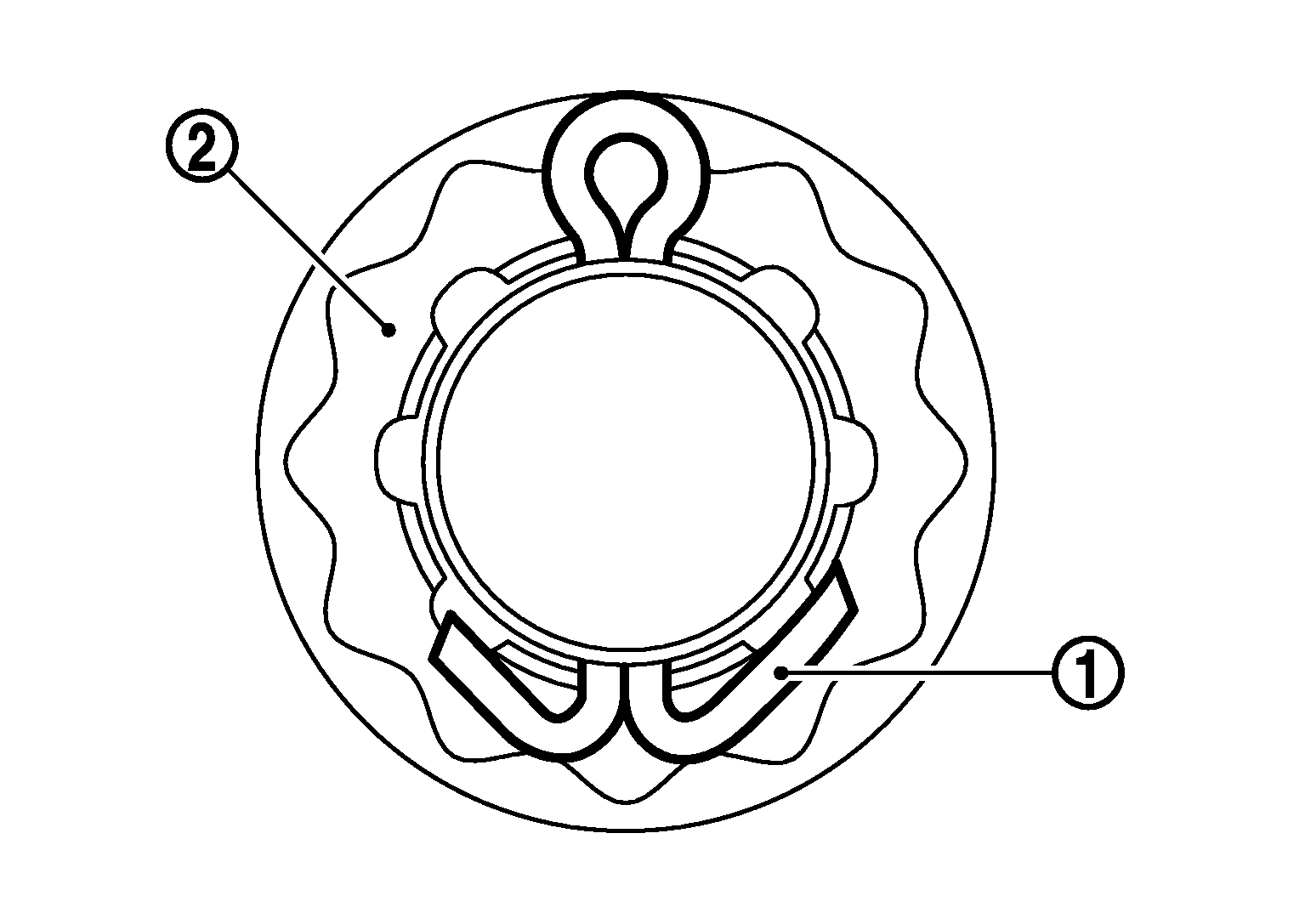

When installing cotter pin (1) and nut retainer (2), securely bend cotter pin to prevent rattles.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse the cotter pin or the wheel hub lock nut.

When installing wheel hub and bearing assembly to steering knuckle, align cutout in sensor rotor cover with wheel sensor mounting hole in steering knuckle.
Align the marks (A) made on the disc brake rotor and front wheel hub and bearing during disassembly.

Courtesy of NISSAN NORTH AMERICA, INC.
