Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

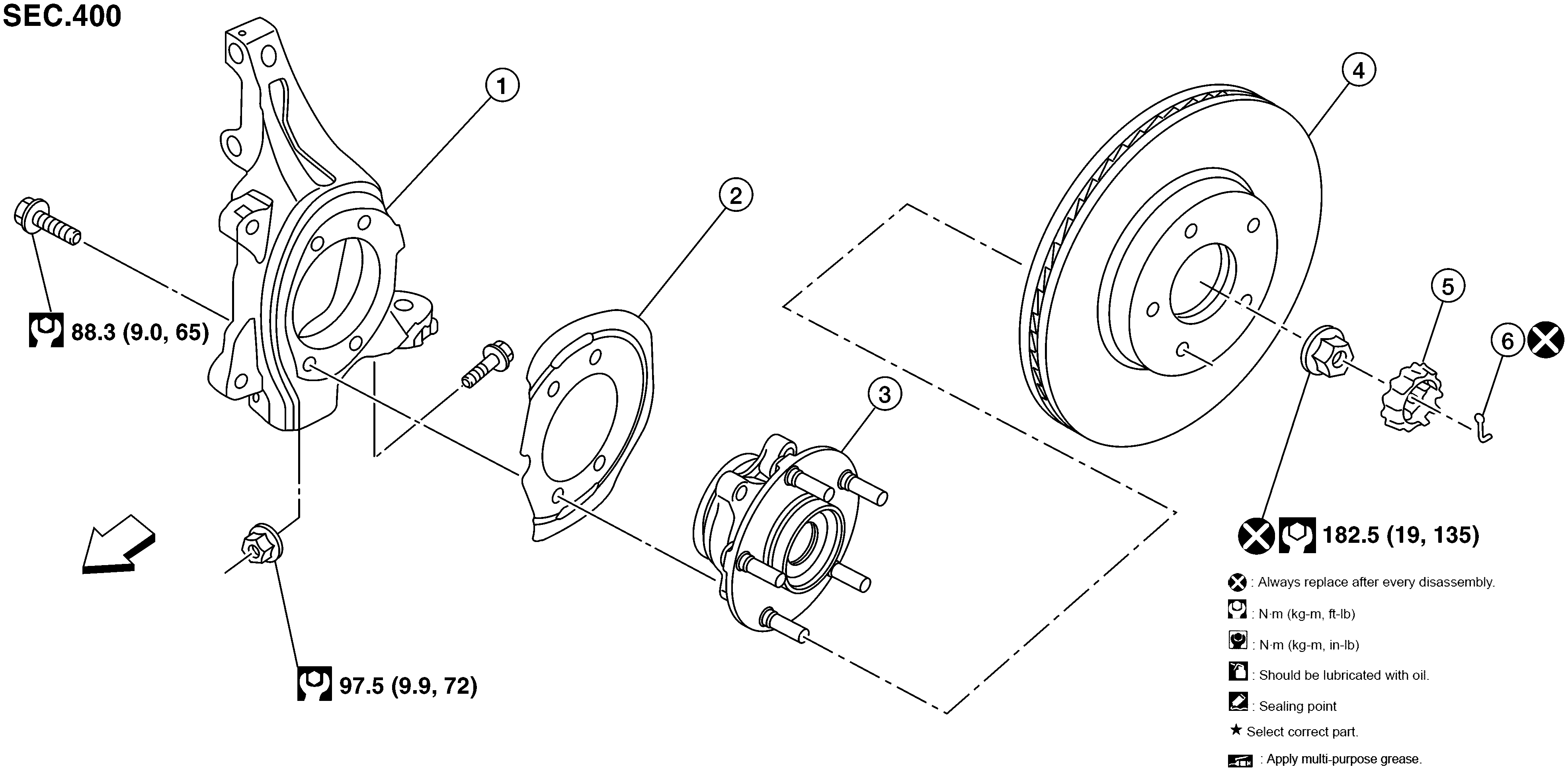

Fig 1: Front Wheel Hub And Bearing With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Splash guard	3.	Wheel hub and bearing
4.	Rotor	5.	Nut retainer	6.	Cotter pin
	Front
