Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Beginning on the RH side of the instrument panel switch carrier, release the metal clips and pawls using a suitable tool (A) and reposition the instrument panel switch carrier.

Courtesy of NISSAN NORTH AMERICA, INC.

: Metal clip

: Pawl
Disconnect the USB connector and AUX jack harness connectors.

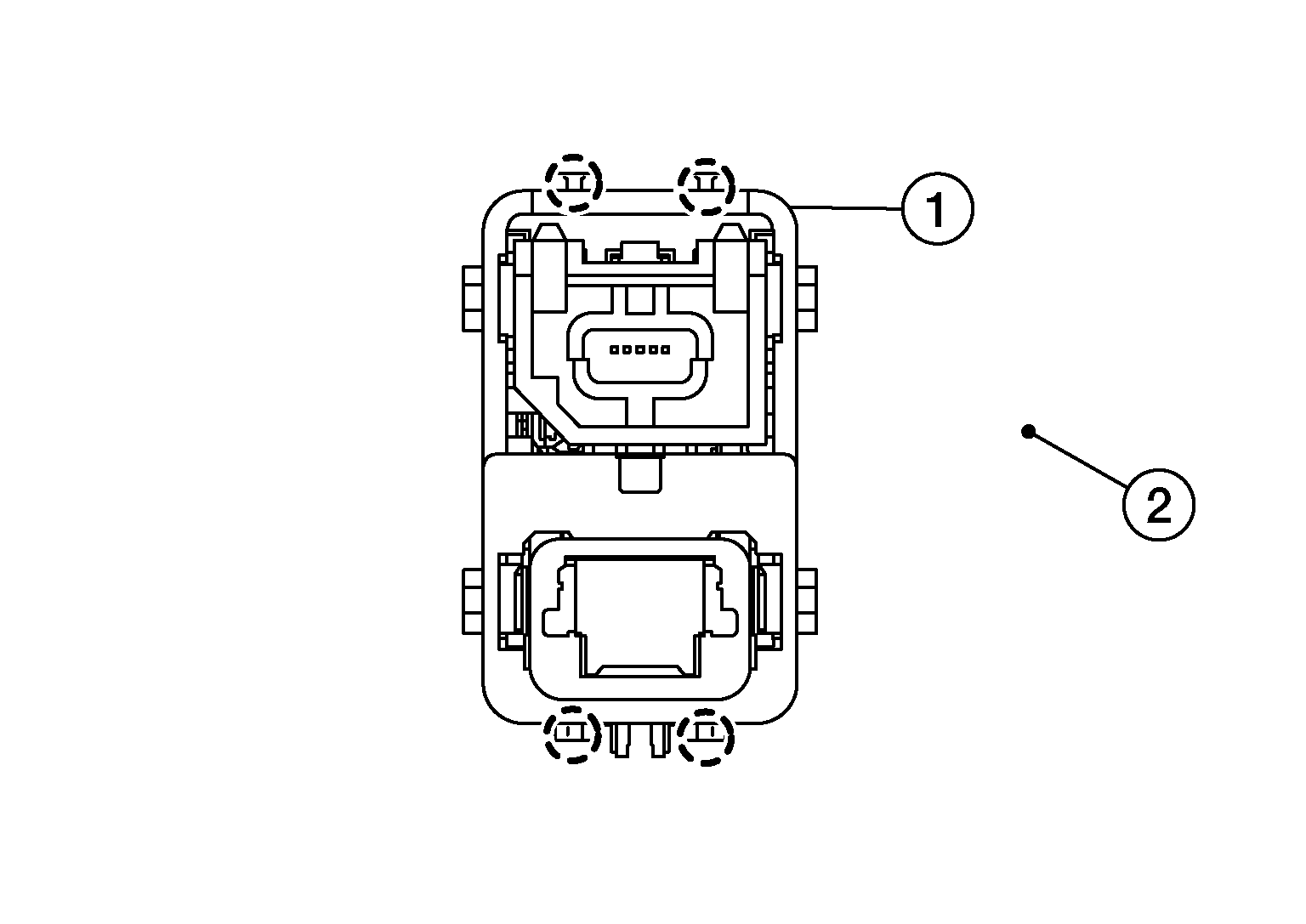

Release the pawls and remove the USB connector and AUX jack (1) from the instrument panel switch carrier (2).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
