Method Of Starting

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the audio unit OFF.

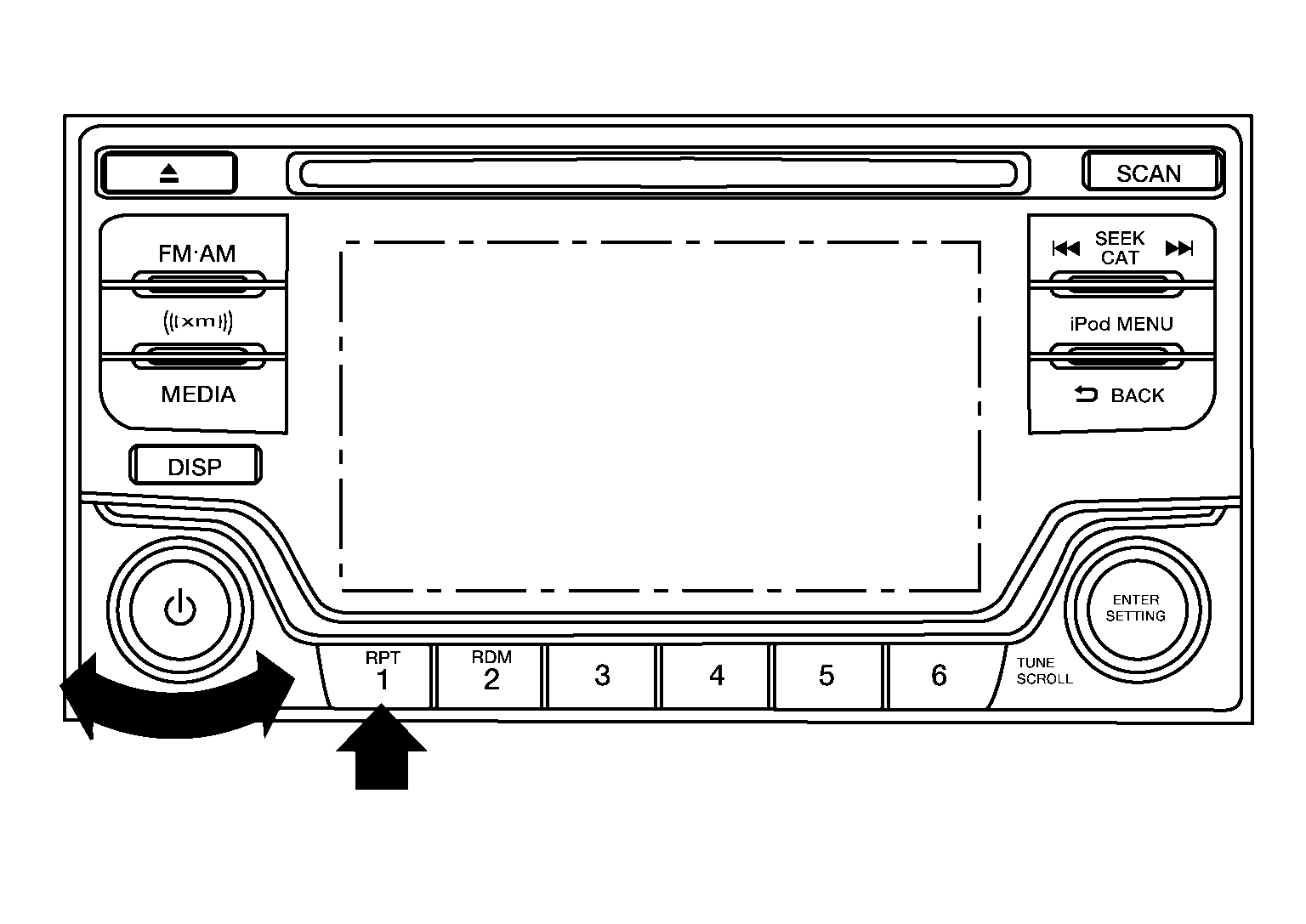

  3. While pressing the preset 1 button, turn the volume control dial clockwise and counterclockwise quickly approximately 15 times or more. Shifting from current screen to previous screen is performed by pressing BACK button.
    GNSAWNIA4628Z-628Courtesy of NISSAN NORTH AMERICA, INC.

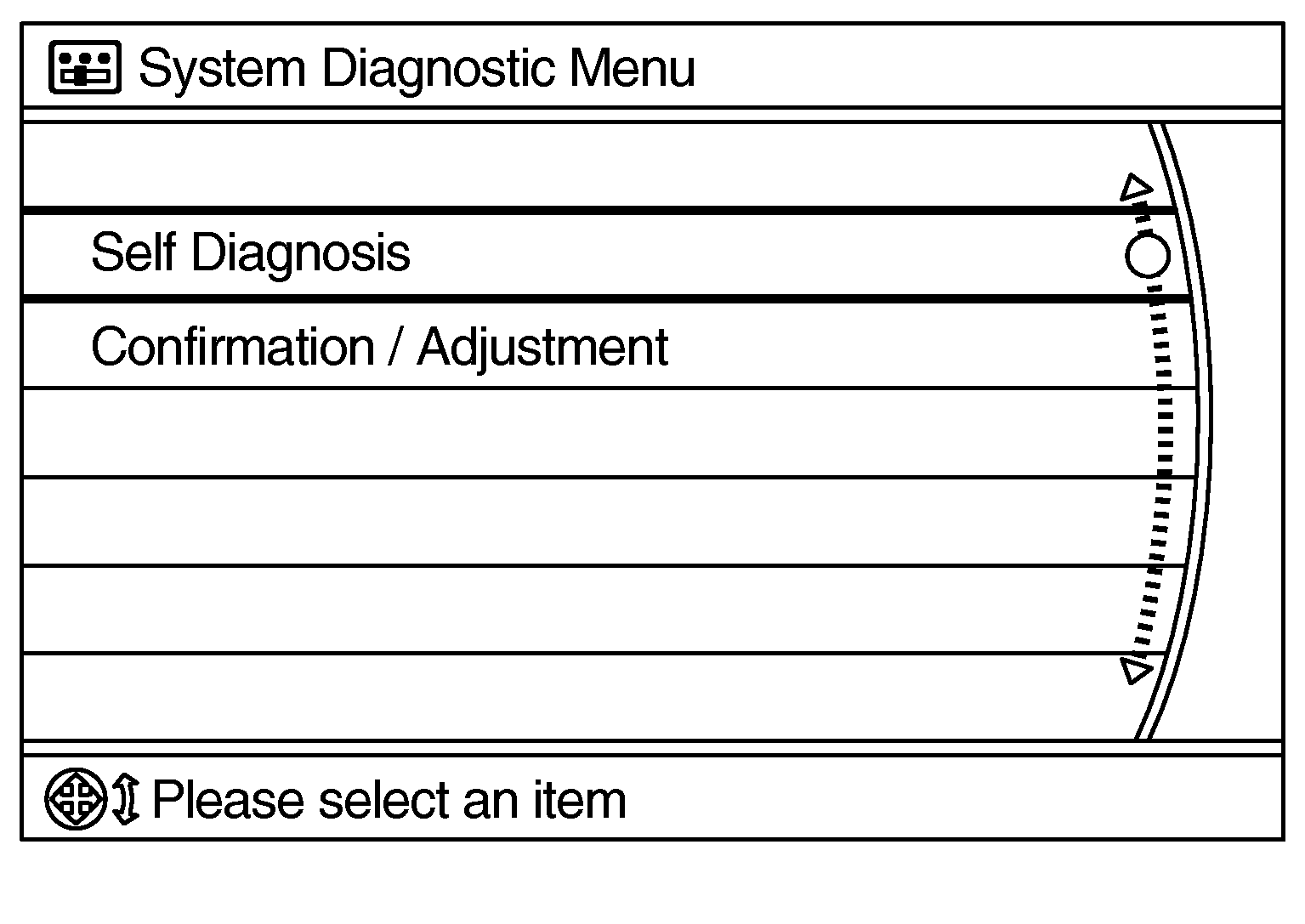

  4. The trouble diagnosis initial screen is displayed, and Self Diagnosis or Confirmation/Adjustment can be selected.
    G05219839Courtesy of NISSAN NORTH AMERICA, INC.
