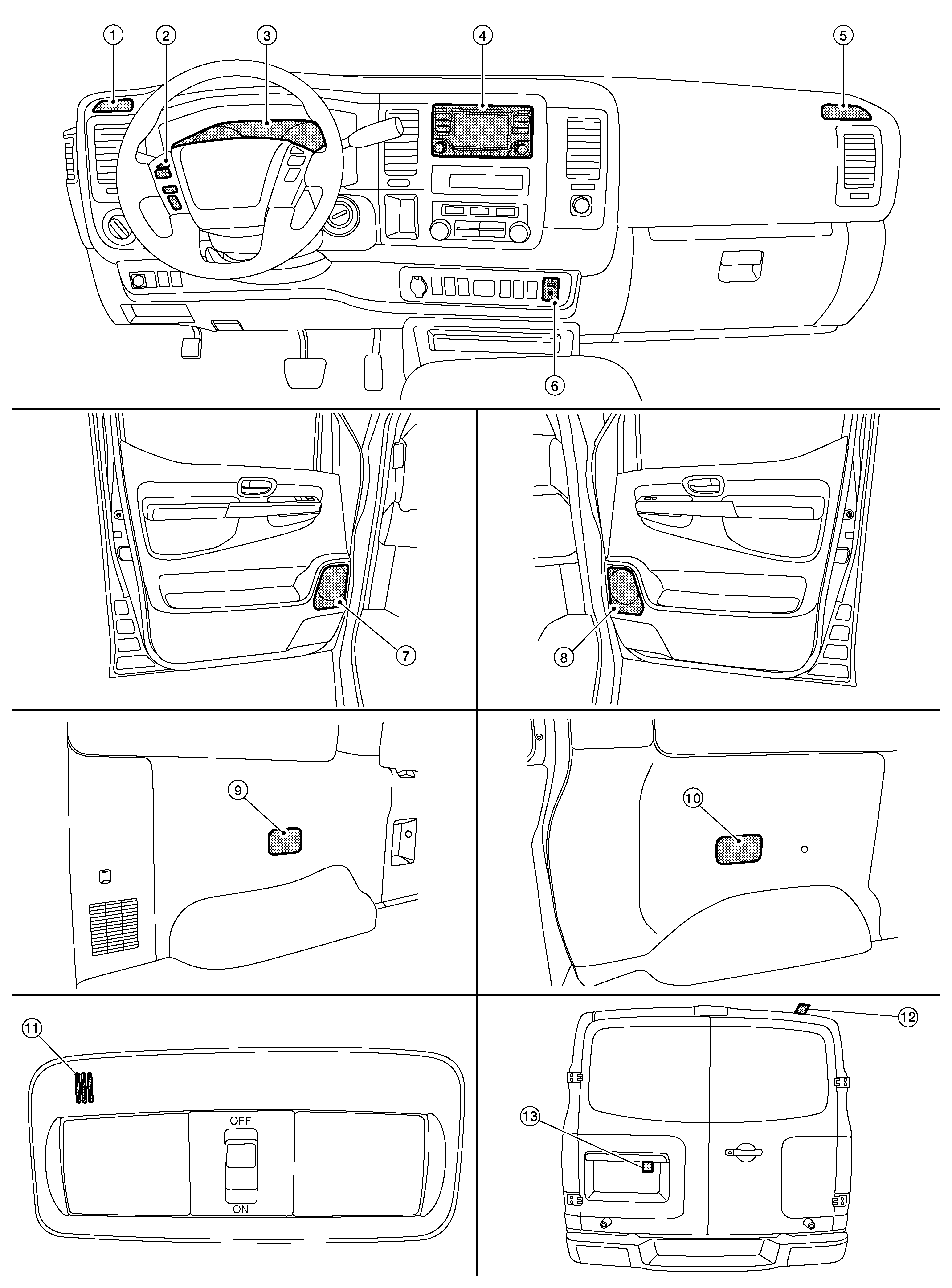

Component Parts Location

1.

Tweeter LH (if equipped)

2.

Steering wheel audio control switches

3.

Combination meter

4.

Audio unit

5.

Tweeter RH (if equipped)

6.

USB interface and AUX in jack

7.

Front door speaker LH

8.

Front door speaker RH

9.

Rear speaker LH (if equipped)

10.

Rear speaker RH (if equipped)

11.

Microphone

12.

Satellite antenna (if equipped)

13.

Rear view camera

Part name

Description

Audio unit

• Operational switch of audio system is integrated.
• Includes the audio, hands-free phone, satellite radio, rear view monitor and USB connection and AUX connection functions.
• Sound signals are output to each speaker.
• Inputs the illumination signals that are required for the display dimming control.
• Inputs the signals for driving status recognition (vehicle speed and reverse).

• Supplies power to rear view camera.
• Camera image signal is input from rear view camera.
• Receives the TEL voice signal and outputs to the speakers.

Front door speaker

• Outputs sound signal from audio unit.
• Outputs mid and low range sounds.

Tweeter

• Outputs sound signal from audio unit.
• Outputs high range sounds.

Rear speaker

• Outputs sound signal from audio unit.
• Outputs mid and low range sounds.

Steering wheel audio control switches

• Operations for audio and hands-free phone are possible.
• Steering switch signal (operation signal) is output to audio unit.

Microphone

• Used for hands-free phone operation.
• Microphone signal is transmitted to audio unit.
• Power (microphone VCC) is supplied from audio unit.

Rod antenna

Receives AM/FM radio waves and outputs it to audio unit.

Satellite antenna

Receives satellite radio waves and outputs it to audio unit.

Rear view camera

• Camera power supply is input from audio unit.
• The image of vehicle rear view is transmitted to audio unit.

USB interface and AUX in jack

• Sound signal of auxiliary input is transmitted to audio unit.
• Sound signal of USB input is transmitted to audio unit.
