Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cluster lid C. Refer to Removal and Installation .

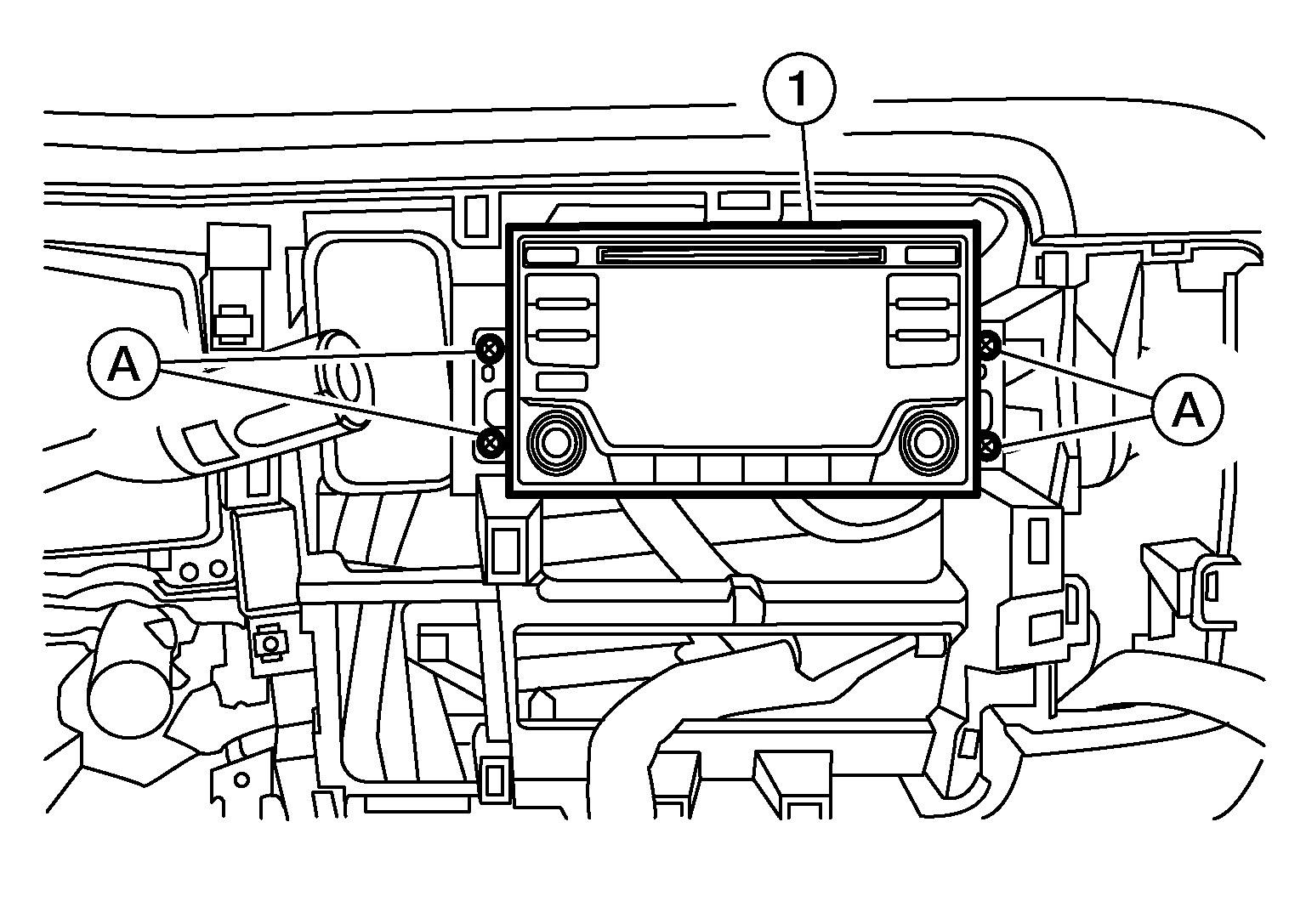

  2. Remove the audio unit screws (A).
    GNSAWNIA0037Z-037Courtesy of NISSAN NORTH AMERICA, INC.
  3. Pull the audio unit (1) out from the instrument panel and disconnect the harness connectors from audio unit.
  4. Remove the audio unit (1) from the instrument panel.
  5. Remove the audio unit bracket screws (A) and the audio unit bracket (1) from each side of the audio unit.
    GNSALNIA1281Z-281Courtesy of NISSAN NORTH AMERICA, INC.
