Special Service Tools

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

The actual shape of the tools may differ from those illustrated here.

Tool number

(TechMate No.)

Tool name

Description

(J-46534)

Trim Tool Set

Courtesy of NISSAN NORTH AMERICA, INC.

Removing trim components

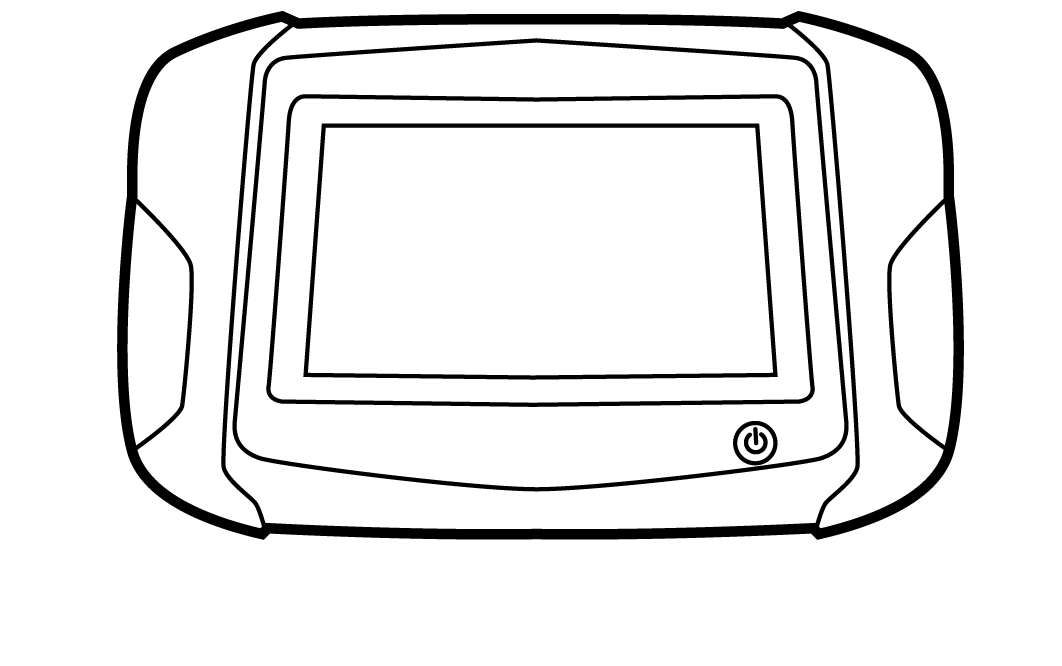

(J-51922)

Enhanced Multi-Media Interface Tester (EMMIT)

Courtesy of NISSAN NORTH AMERICA, INC.

Tests the functionality of the following features:

Bluetooth

Pairing/Connecting
Phonebook Access Profile
Hands Free Profile (for calls)
Bluetooth Audio test
Message Access Profile (for text messages, if equipped)

USB

Tests USB music playback
Tests USB music browsing capability

AUX

Tests AUX Jack playback
