Commercial Service Tool

WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

Tool name (TechMate No.)	Description
Leak detector i.e.: (J-41416)	Courtesy of NISSAN NORTH AMERICA, INC.	Locates the EVAP leak
EVAP service port adapter i.e.: (J-41413-OBD)	Courtesy of NISSAN NORTH AMERICA, INC.	Applies positive pressure through EVAP service port
Fuel filler cap adapter i.e.: (J-42909)	Courtesy of NISSAN NORTH AMERICA, INC.	Checks fuel tank vacuum relief valve opening pressure

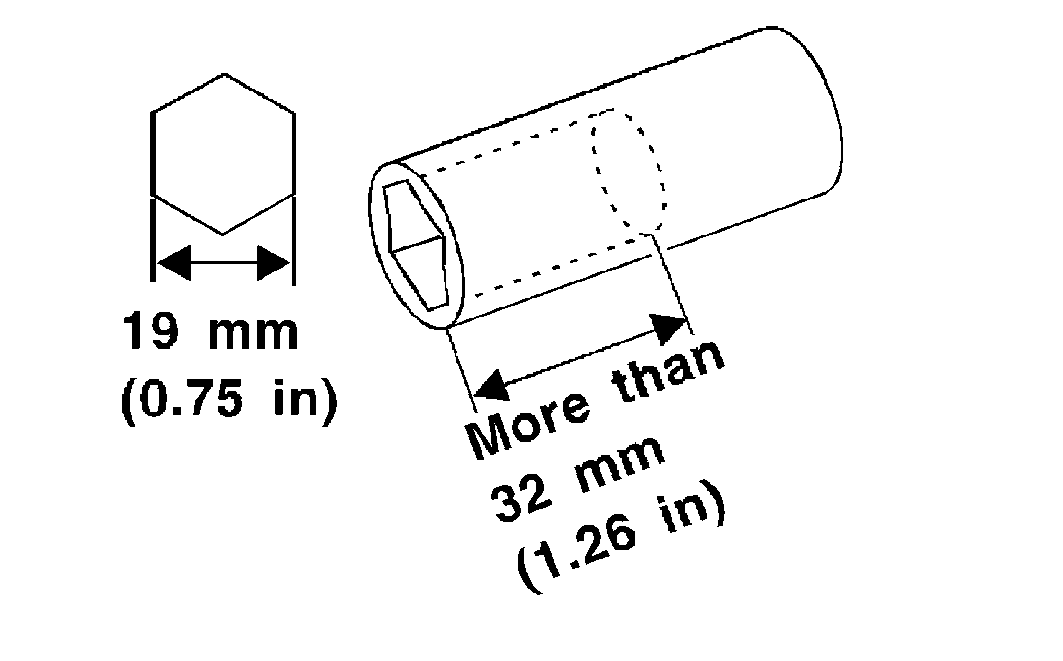

Socket wrench	Courtesy of NISSAN NORTH AMERICA, INC.	Removes and installs engine coolant temperature sensor

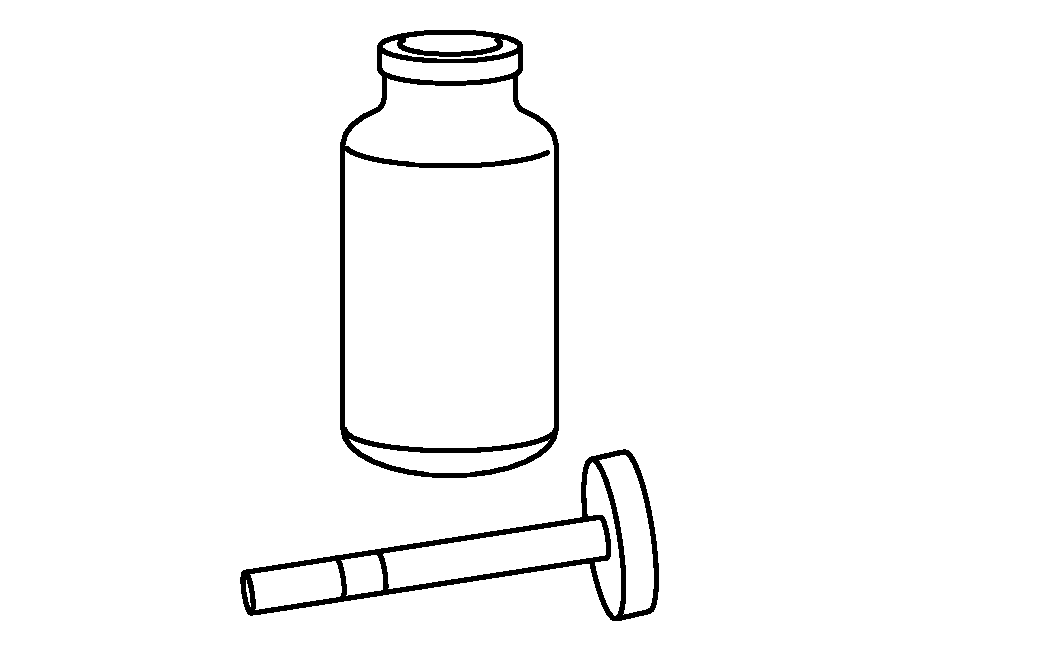

Oxygen sensor thread cleaner i.e.: (J-43897-18) (J-43897-12)	Courtesy of NISSAN NORTH AMERICA, INC.	Reconditions the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below. a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor
Anti-seize lubricant i.e.: (Permatex ^TM 133AR or equivalent meeting MIL specification MIL-A-907)	Courtesy of NISSAN NORTH AMERICA, INC.	Lubricates oxygen sensor thread cleaning tool when reconditioning exhaust system threads.
