ABS Actuator and Electric Unit (Control Unit): Notes

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Electric unit (control unit) is integrated with actuator and comprehensively controls VDC function, TCS function, ABS function, EBD function and brake assist function.

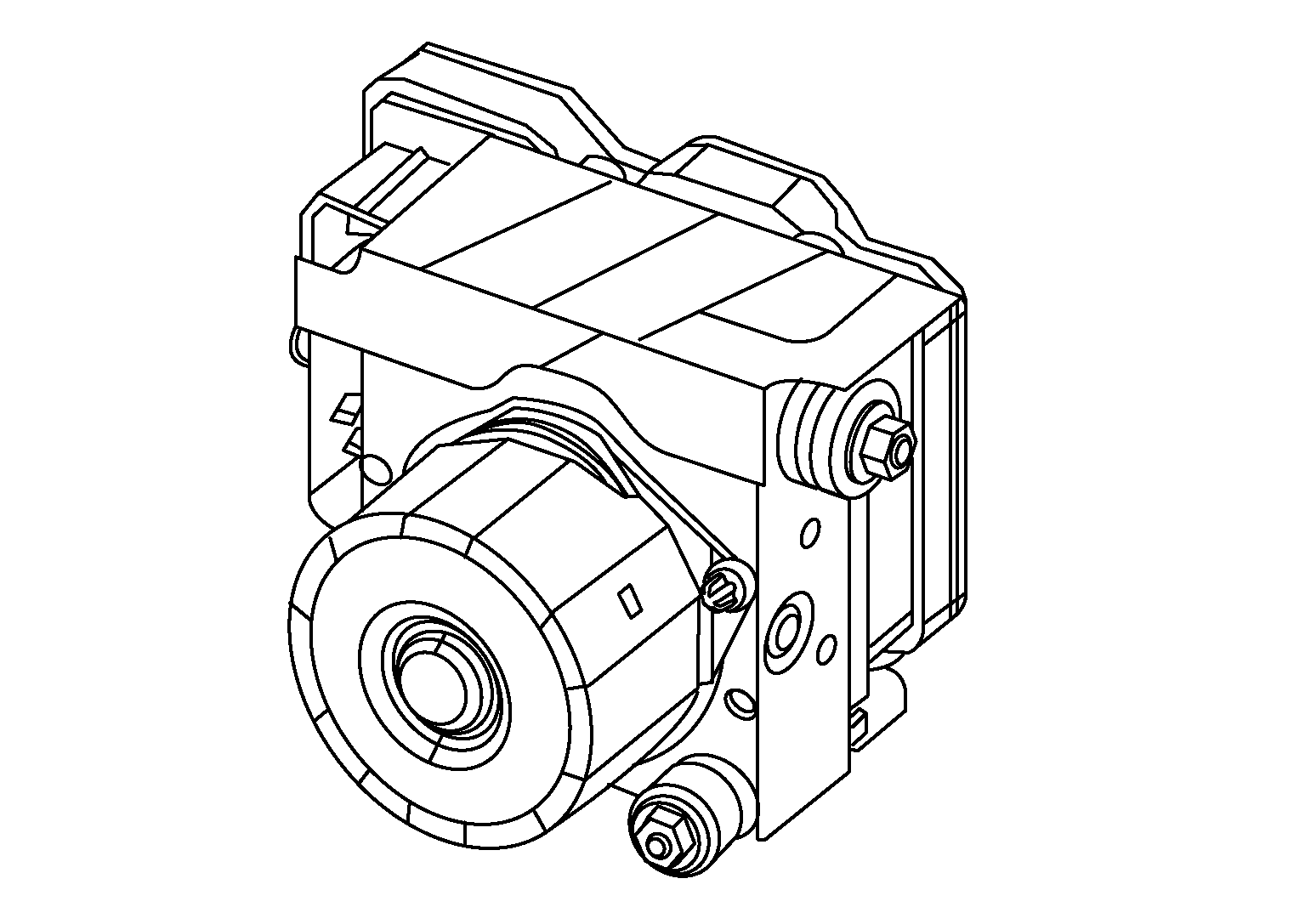

GNSALFIA0427Z-427Courtesy of NISSAN NORTH AMERICA, INC.
