Intermittent Operation
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
- Ignition switch ON.
- Front wiper switch INT.

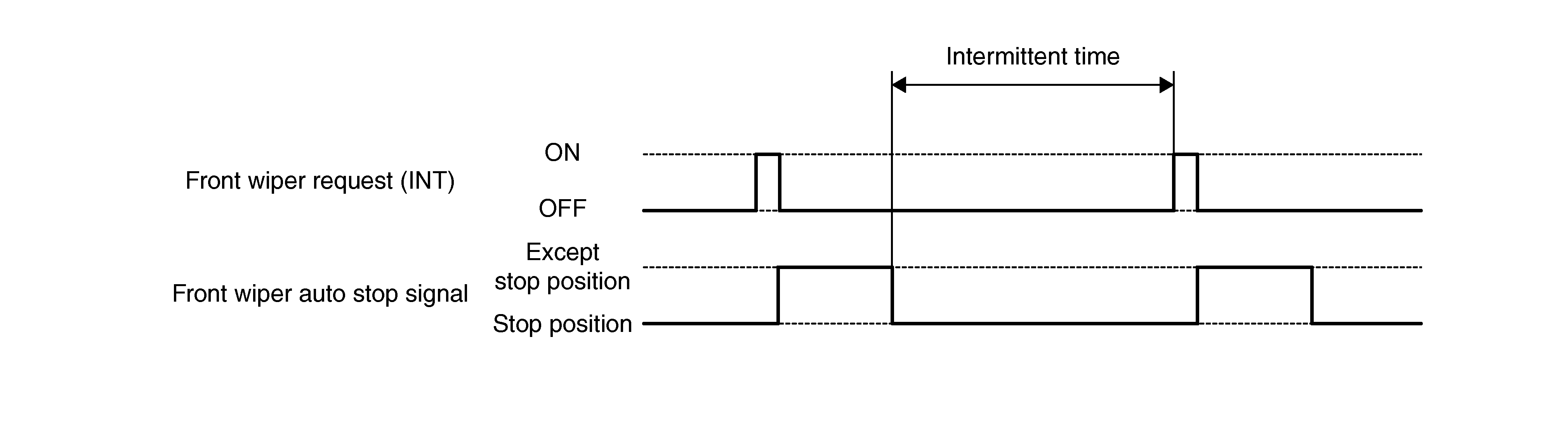

- BCM reads the combination switch position. BCM calculates the delay interval based on the table below and then transmits the front wiper request signal (INT) to IPDM E/R using CAN communication.
- IPDM E/R turns ON the front wiper relay only once.
- BCM detects stop position of the front wiper motor based on the front wiper stop position signal received from the IPDM E/R.
- BCM transmits the front wiper request signal (INT) again after the delay interval.
|
Intermittent switch position |
Length of delay |
Delay interval (s) |
|
5 |
Short ↑ ↓ Long |
1 |
|
4 |
3 |
|
|
3 |
5 |
|
|
2 |
10 |
|
|
1 |
16 |
