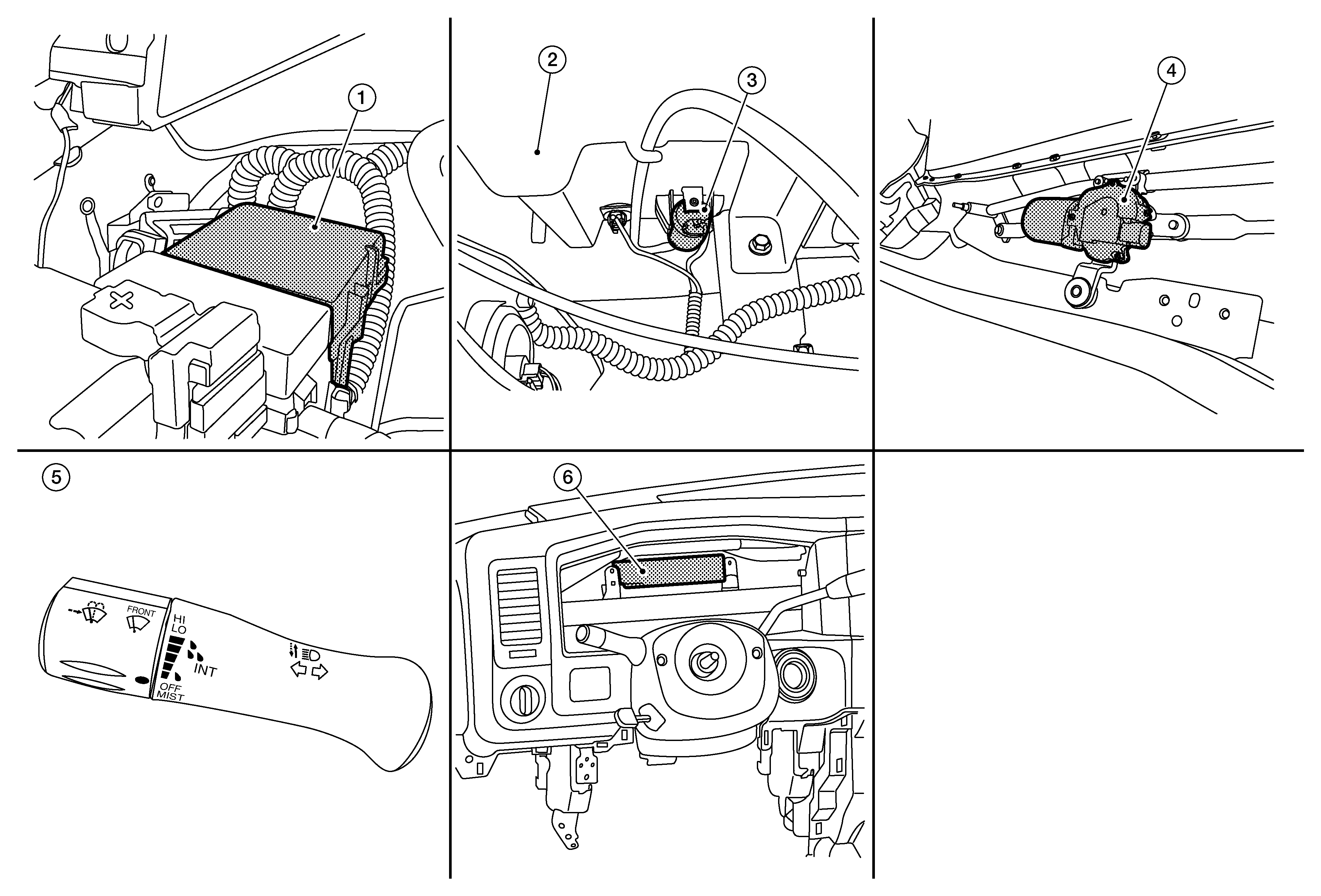

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
IPDM E/R
|
2.
|
Washer fluid reservoir
|
3.
|
Front washer motor
|
|
4.
|
Front wiper motor
(view with cowl top removed)
|
5.
|
Combination switch (wiper and washer switch)
|
6.
|
BCM
(view with combination meter and steering wheel removed)
|
