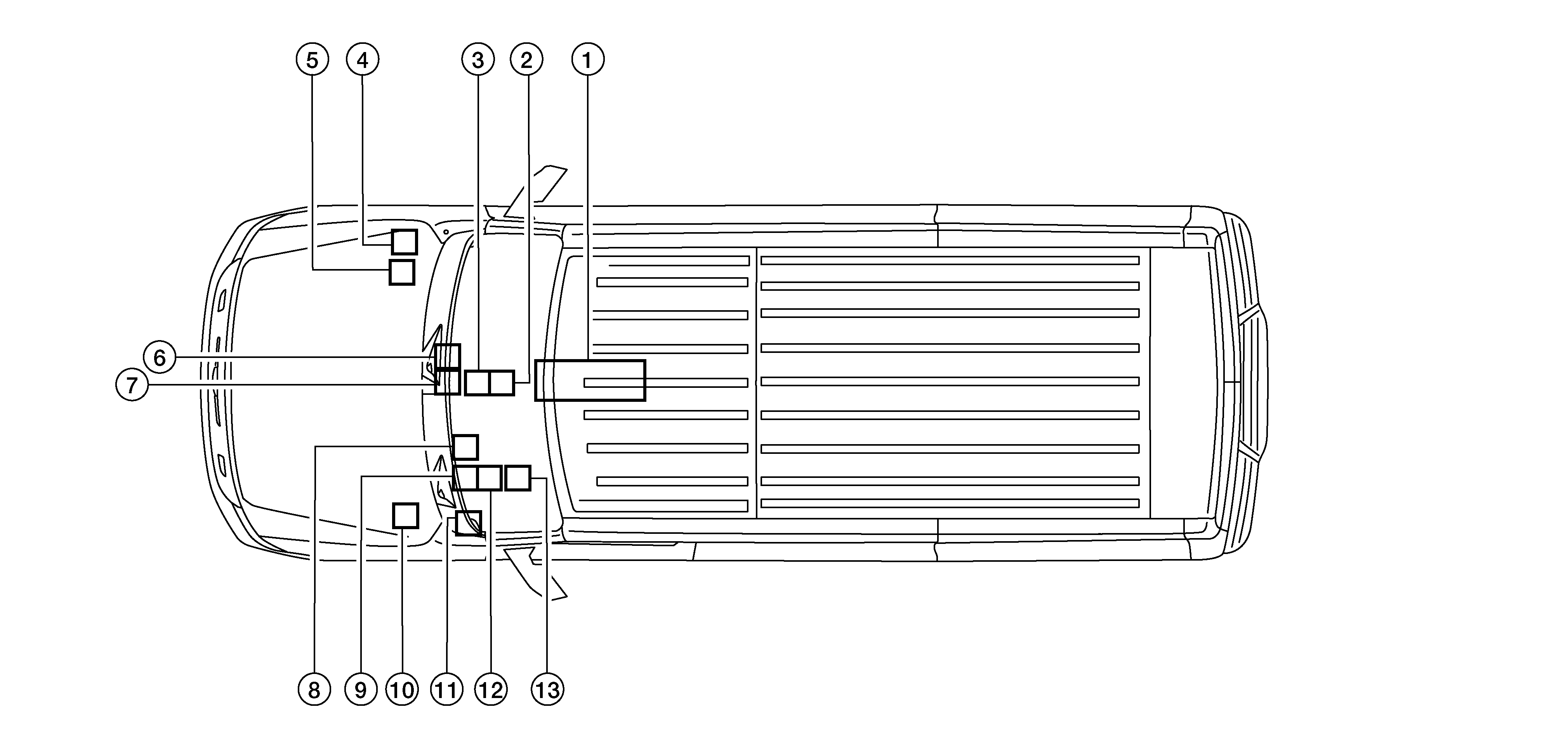

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
A/T assembly F9: With VQ40DE F55: With VK56VD |
2. |
AV control unit M44 |
3. |
Front air control M49: Without Auto A/C M53: With Auto A/C |
|
4. |
ECM E16: With VQ40DE E77: With VK56VD |
5. |
IPDM E/R E122 |
6. |
Pre-wiring for telematics control module M7 |
|
7. |
Air bag diagnosis sensor unit M35: Cargo van M181: Passenger van |
8. |
Data link connector M22 |
9. |
BCM M18 |
|
10. |
ABS actuator and electric unit (control unit) E125 |
11. |
Low tire pressure warning control unit M90 |
12. |
Combination meter M24 |
|
13. |
Steering angle sensor M17 |
