Door Motor Control
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.

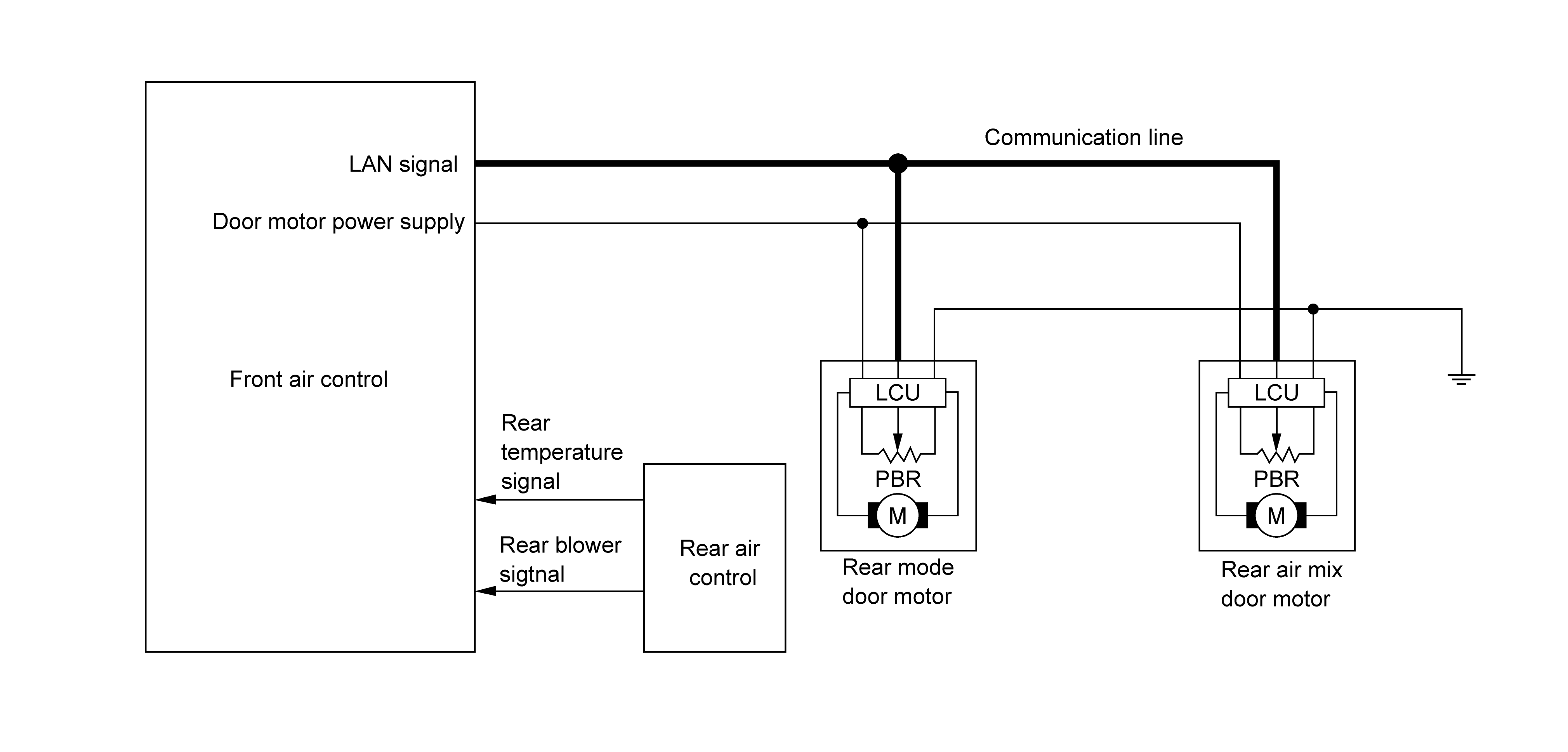

- LCU (Local Control Unit) is built into each door motor. And detects door position by PBR (Potentio Balance Resistor).
- Front air control communicates with each LCU via communication line. And receives each door position feedback signal from each LCU.
- Each LCU controls each door to the appropriate position depending on the control signal from front air control.
- Each LCU transmits the signal of door movement completion to front air control, when the door movement is completed.
