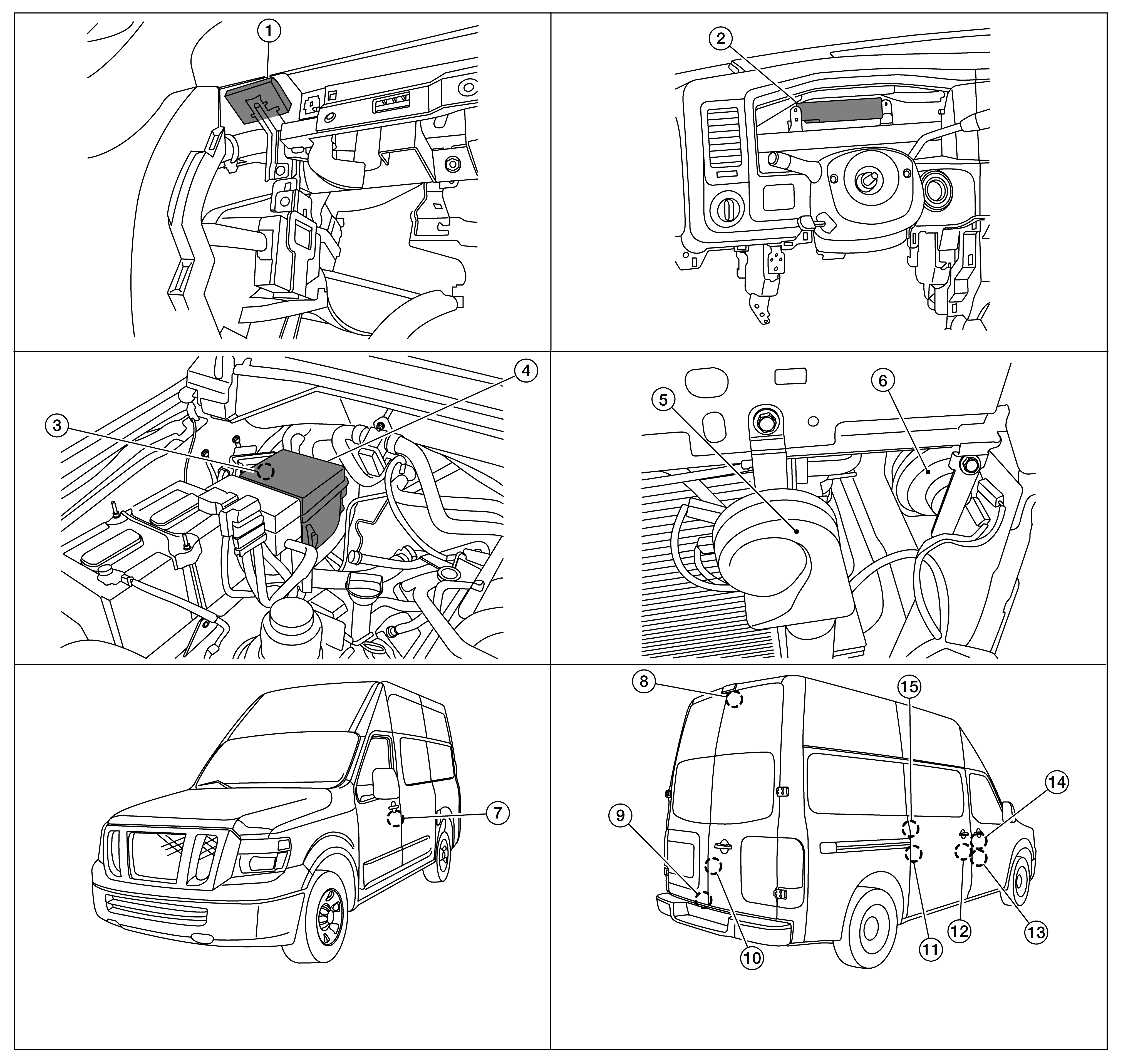

Component Parts Location
WARNING: This page is about a different car, the 2018 Nissan NV3500 HD, 2018 Nissan NV2500 HD, and 2018 Nissan NV1500. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Remote keyless entry receiver (view with glove box removed) |
2. |
BCM (view with combination meter and steering wheel removed) |
3. |
Horn relay |
|
4. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
5. |
Horn low (view with front grille removed) |
6. |
Horn high (view with front grille removed) |
|
7. |
Front door switch LH |
8. |
Back door switch upper RH |
9. |
Back door switch lower LH |
|
10. |
Back door switch lower RH |
11. |
Sliding door switch |
12. |
Sliding door contact switch (door) |
|
13. |
Sliding door contact switch (pillar) |
14. |
Front door switch RH |
15. |
Secondary sliding door switch (if equipped) |
