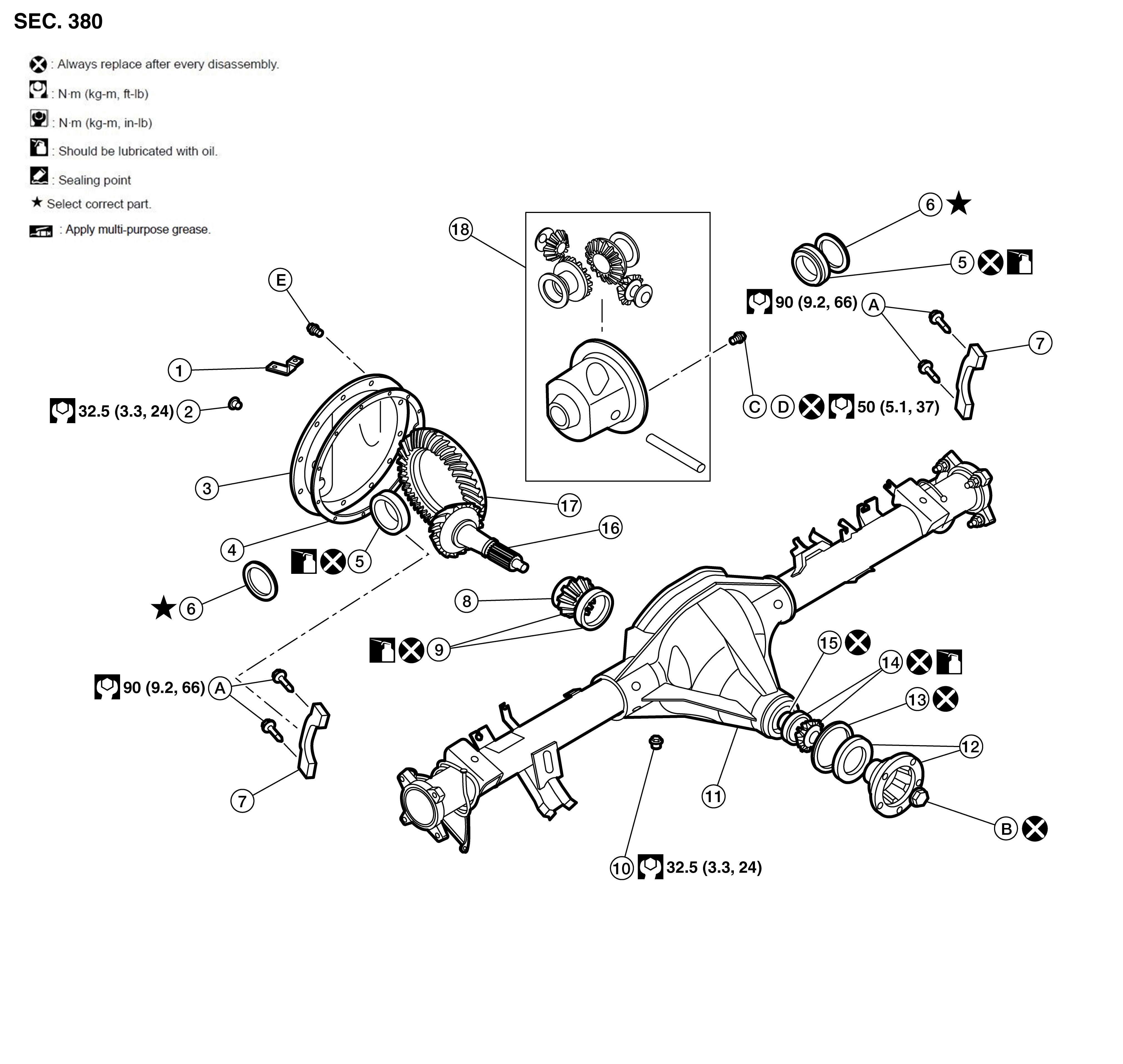

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Bracket |
2. |
Fill plug |
3. |
Cover Pan |
|
4. |
Cover pan gasket |
5. |
Differential bearing |
6. |
Differential shim |
|
7. |
Bearing cap |
8. |
Pinion shim |
9. |
Pinion head bearing |
|
10. |
Drain plug |
11. |
Carrier |
12. |
Companion flange assembly |
|
13. |
Pinion seal |
14. |
Pinion tail bearing |
15. |
Collapsible spacer |
|
16. |
Drive pinion |
17. |
Drive gear |
18. |
Differential |
|
A. |
Bearing cap bolts |
B. |
Pinion nut |
C. |
Drive gear bolts, refer to Disassembly and Assembly . |
|
D. |
After tightening bolts to specification, tighten an additional 28 - 32 degrees. |
E. |
Cover pan bolts |
