Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
- After installation, check for vibration by driving the vehicle. Refer to NVH Troubleshooting Chart .
- Install rear diagonal cross member bolts, then tighten bolts to specification in sequence shown (Non-XD models).
Rear diagonal cross member bolts
: 130 N.m (13 kg-m, 96 ft-lb)
CAUTION:
Do not reuse the bolts, nuts and snap rings. Always install new ones.
NOTE:

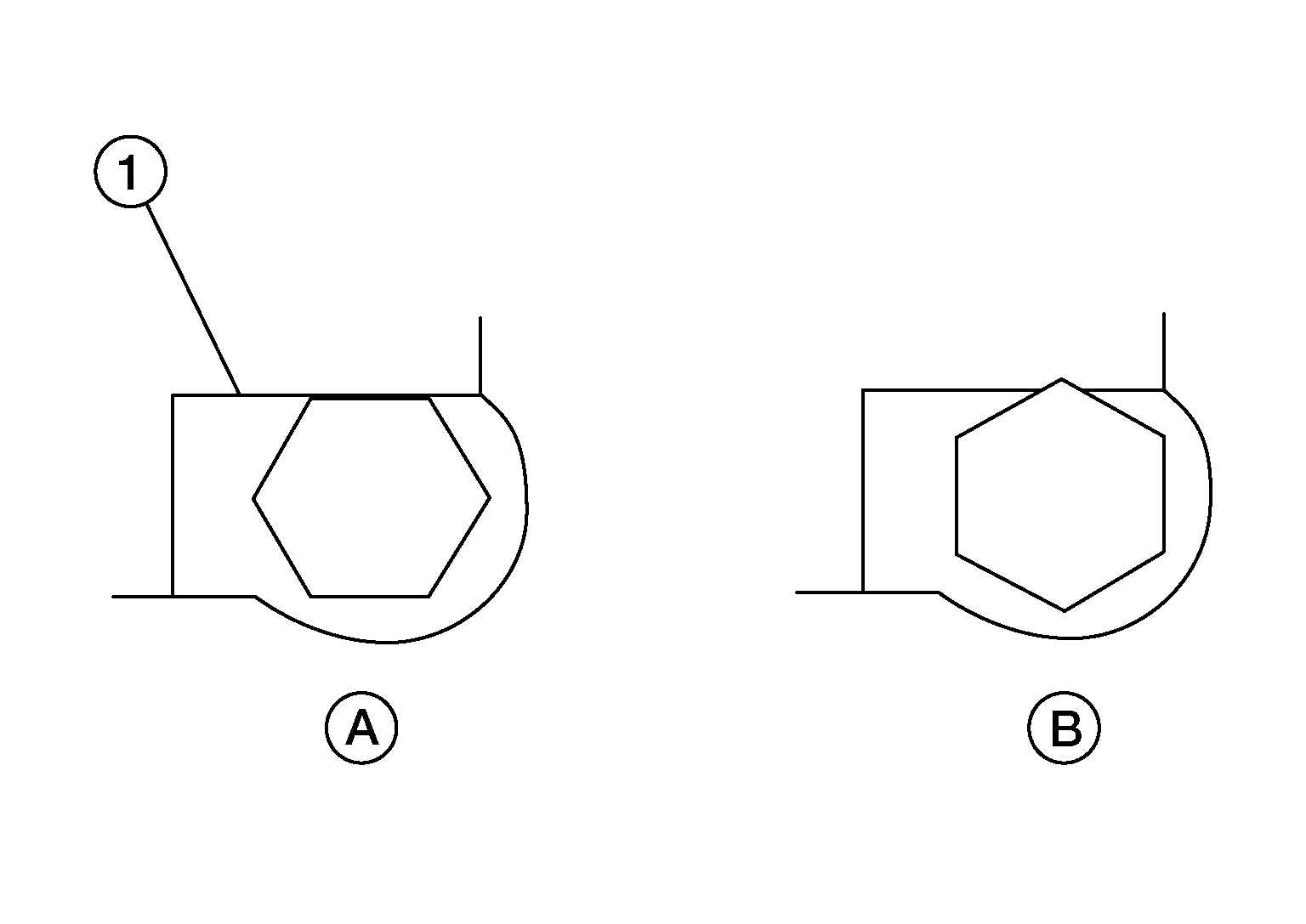

The bolt head should not become out of alignment due to interference between the bolt hexagonal head and the stopper (1) when tightening as shown.
|
(A): |
Correct |
|
(B): |
Not correct |
