Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

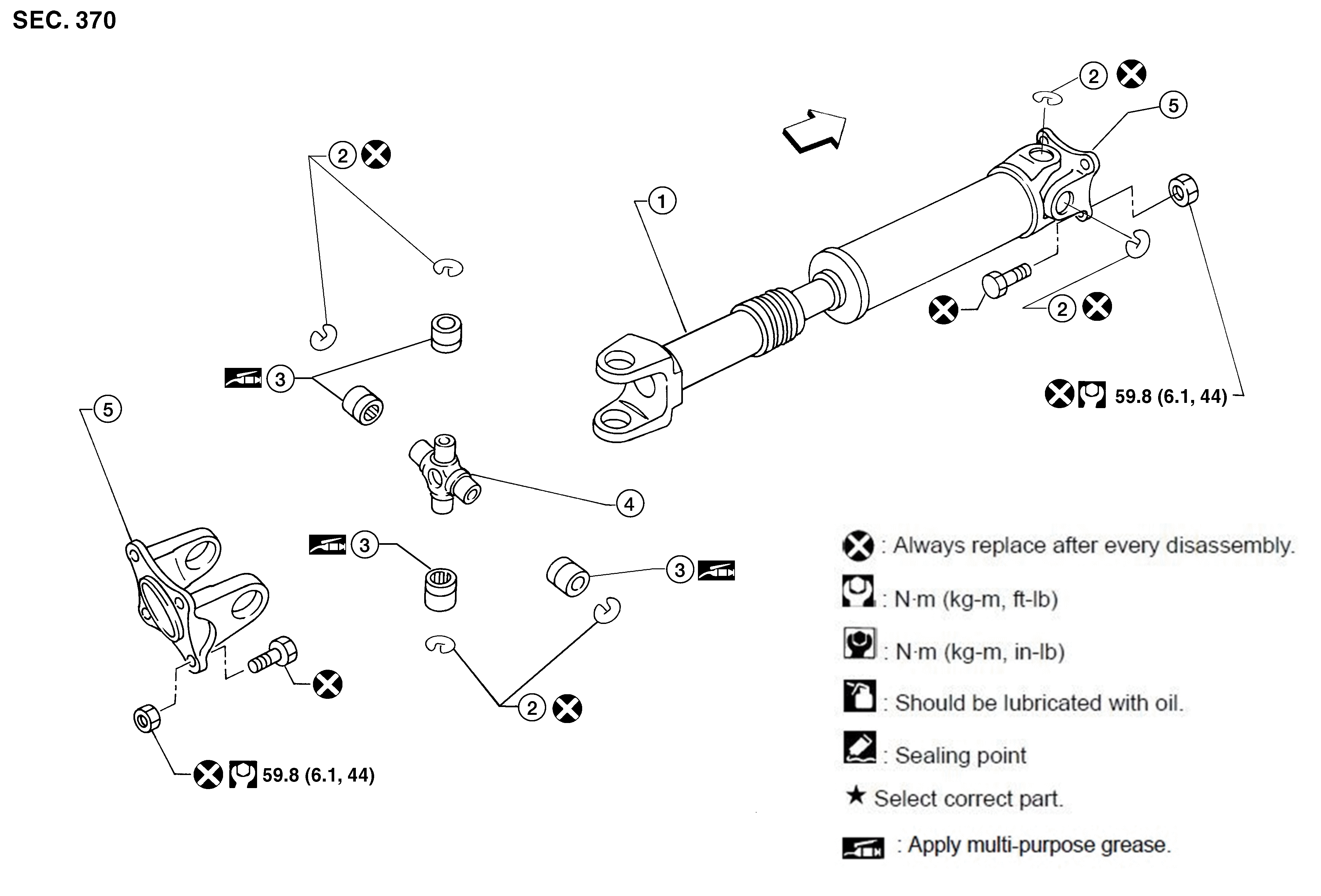

Fig 1: Front Propeller Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Propeller shaft tube	2.	Snap ring	3.	Journal bearing
4.	Journal	5.	Flange yoke		Front
