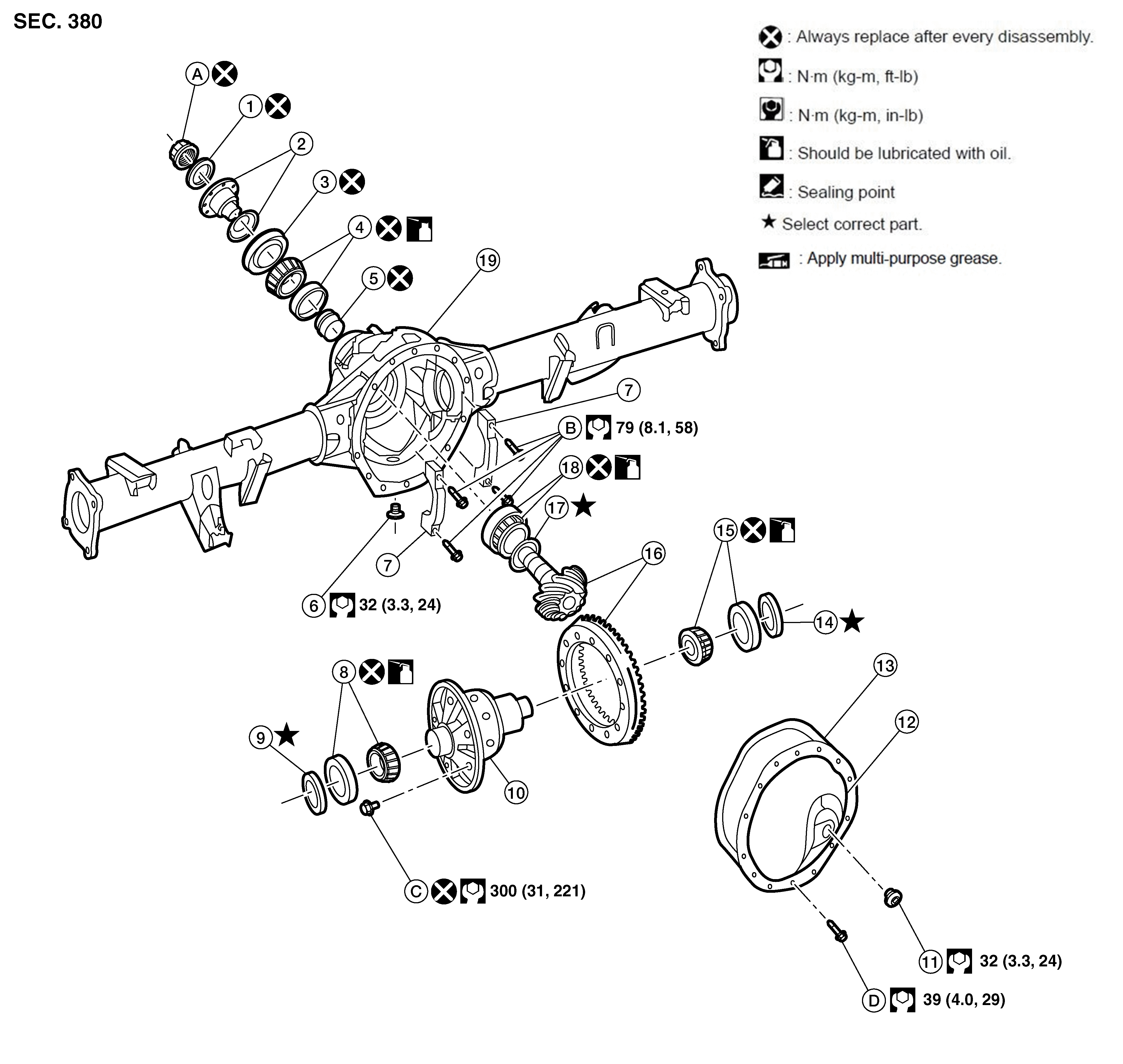

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Drive pinion lock nut washer |
2. |
Companion flange assembly |
3. |
Front oil seal |
|
4. |
Drive pinion front bearing |
5. |
Collapsible spacer |
6. |
Drain plug |
|
7. |
Bearing cap |
8. |
Side bearing assembly LH |
9. |
Side bearing adjusting shim LH |
|
10. |
Differential case assembly |
11. |
Filler plug |
12. |
Carrier cover |
|
13. |
Carrier cover gasket |
14. |
Side bearing adjusting shim RH |
15. |
Side bearing assembly RH |
|
16. |
Drive pinion and drive gear assembly |
17. |
Drive pinion washer |
18. |
Drive pinion rear bearing |
|
19. |
Gear carrier |
A. |
Pinion nut |
B. |
Bearing cap bolts |
|
C. |
Ring gear bolts, refer to Disassembly and Assembly . |
D. |
Carrier cover bolts |
