Removal and Installation: Inspection

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

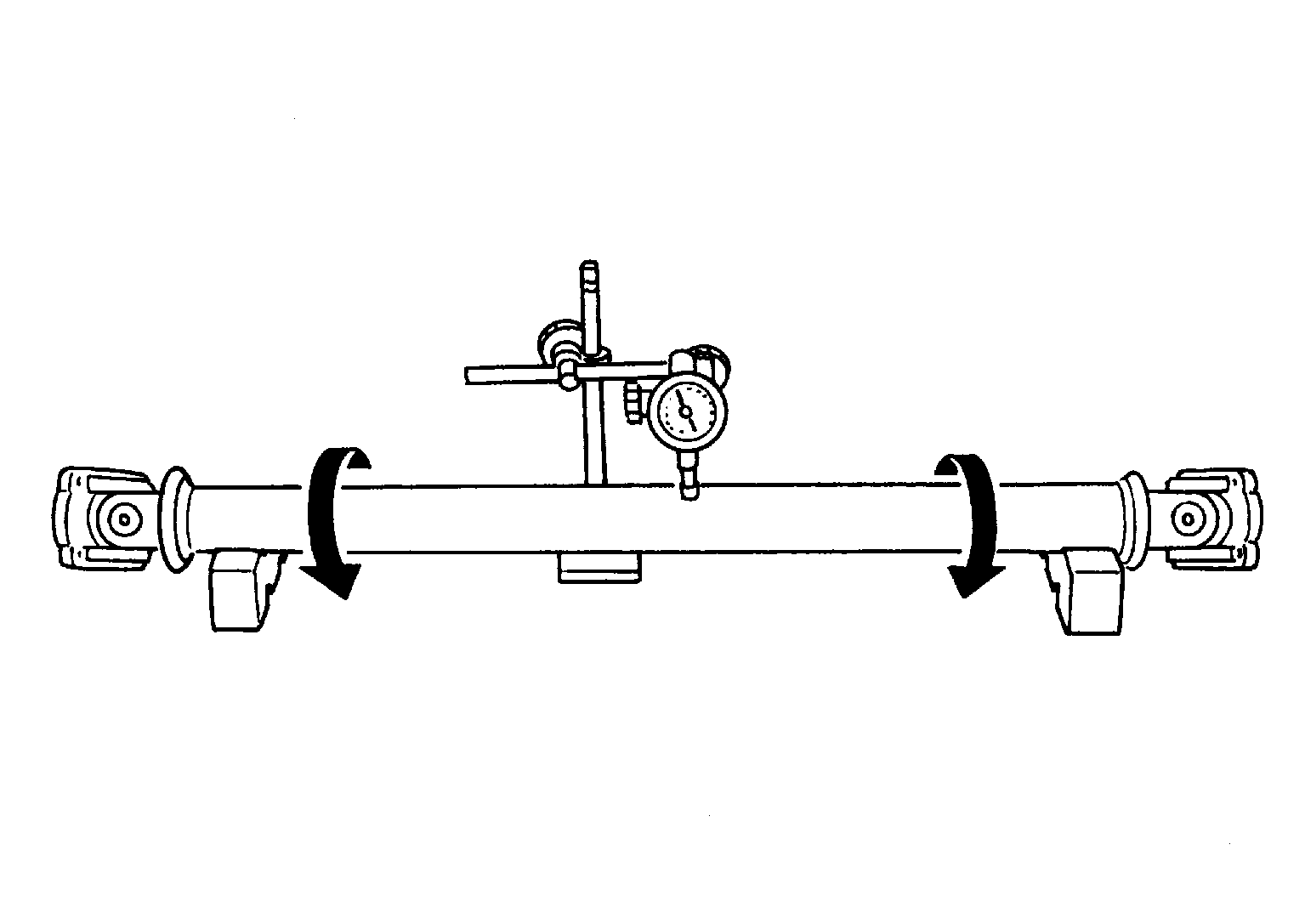

Inspect the propeller shaft runout using suitable tool. If runout exceeds the limit, replace the propeller shaft assembly. Refer to General Specification .

Courtesy of NISSAN NORTH AMERICA, INC.
While holding the flange yoke on one side, check axial play of the joint as shown. If the journal axial play exceeds the specification, repair or replace the journal parts. Refer to General Specification .

Courtesy of NISSAN NORTH AMERICA, INC.
Check the propeller shaft tube surface for dents or cracks. If damage is detected, replace the propeller shaft assembly.
