Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

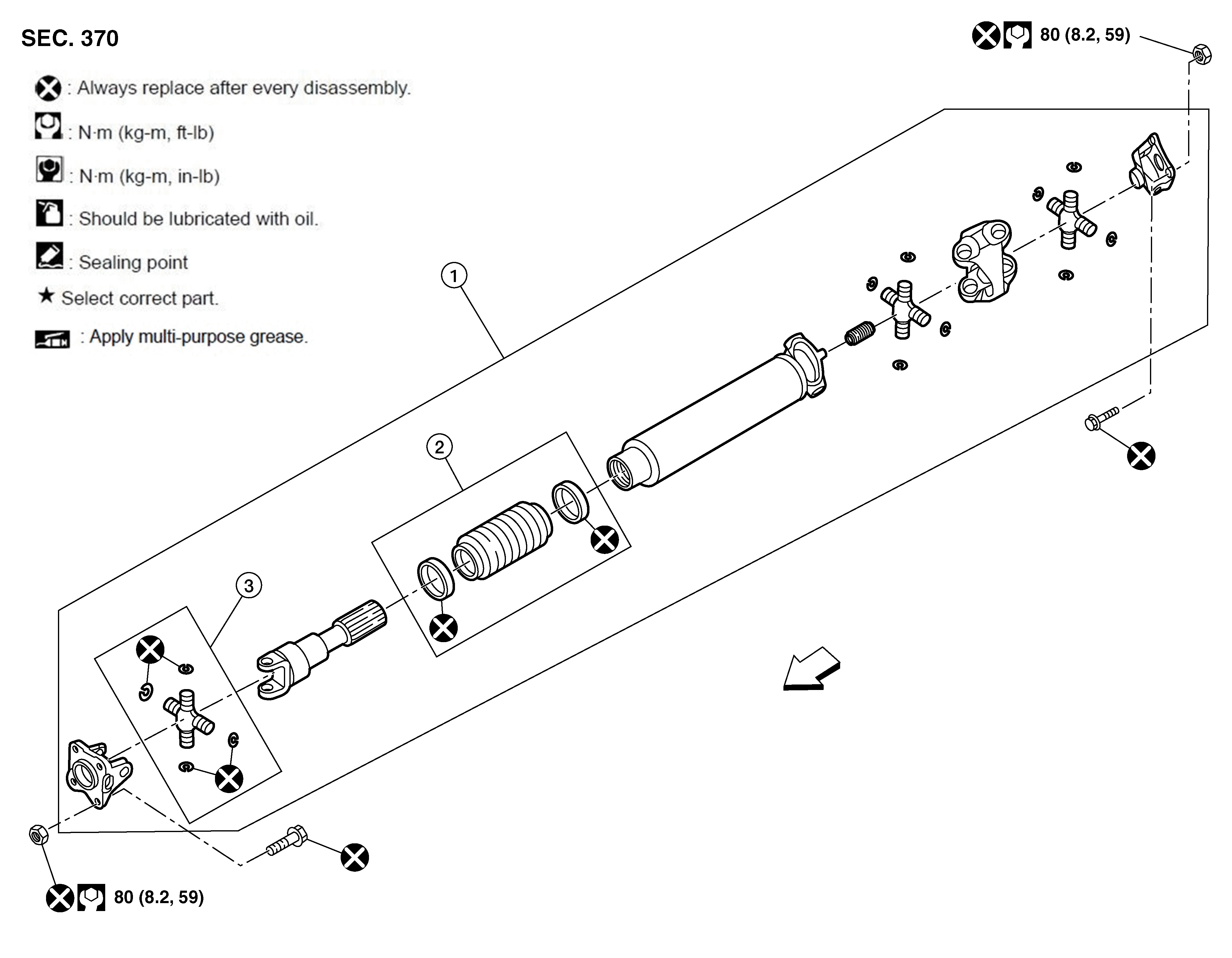

Fig 1: Front Propeller Shaft With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Propeller shaft assembly	2.	Boot	3.	Journal
	: Always replace after every disassembly
	: N.m (kg-m, ft-lb)
