Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

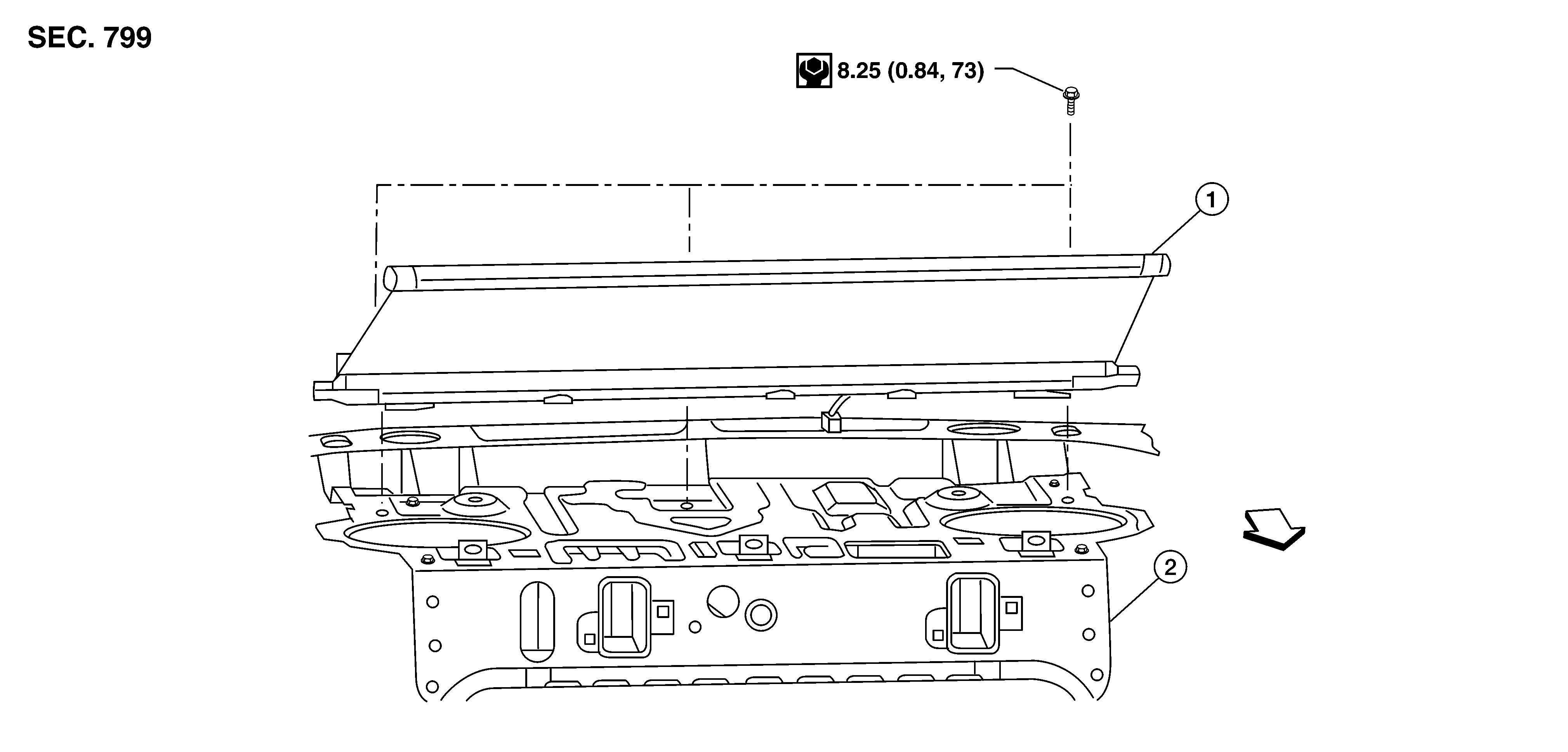

GNSALJIA1739Z-739Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear sunshade

2.

Rear parcel shelf body panel

SYMBOL

Front
