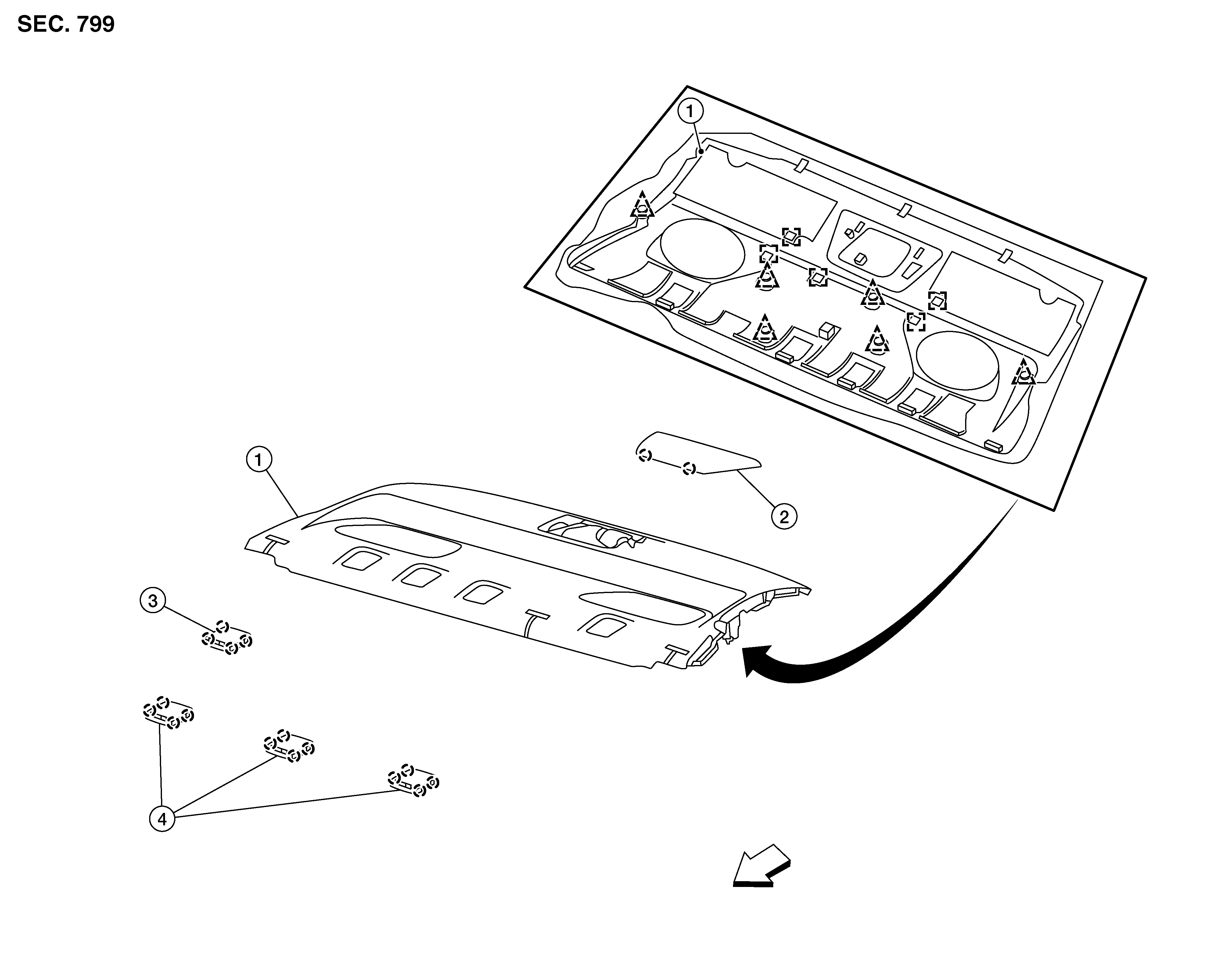

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WITH SUNSHADE
|
1. |
Rear parcel shelf finisher |
2. |
High-mounted stop lamp |
3. |
Seatback lock finisher |
|
4. |
Child anchor cover |
|
Clip |
|
Pawl |
|
|
Dual lock fasteners |
|
Front |
WITHOUT SUNSHADE
|
1. |
Rear parcel shelf finisher |
2. |
High-mounted stop lamp |
3. |
Seatback lock finisher |
|
4. |
Child anchor cover |
|
Clip |
|
Pawl |
|
|
Dual lock fasteners |
|
Front |
