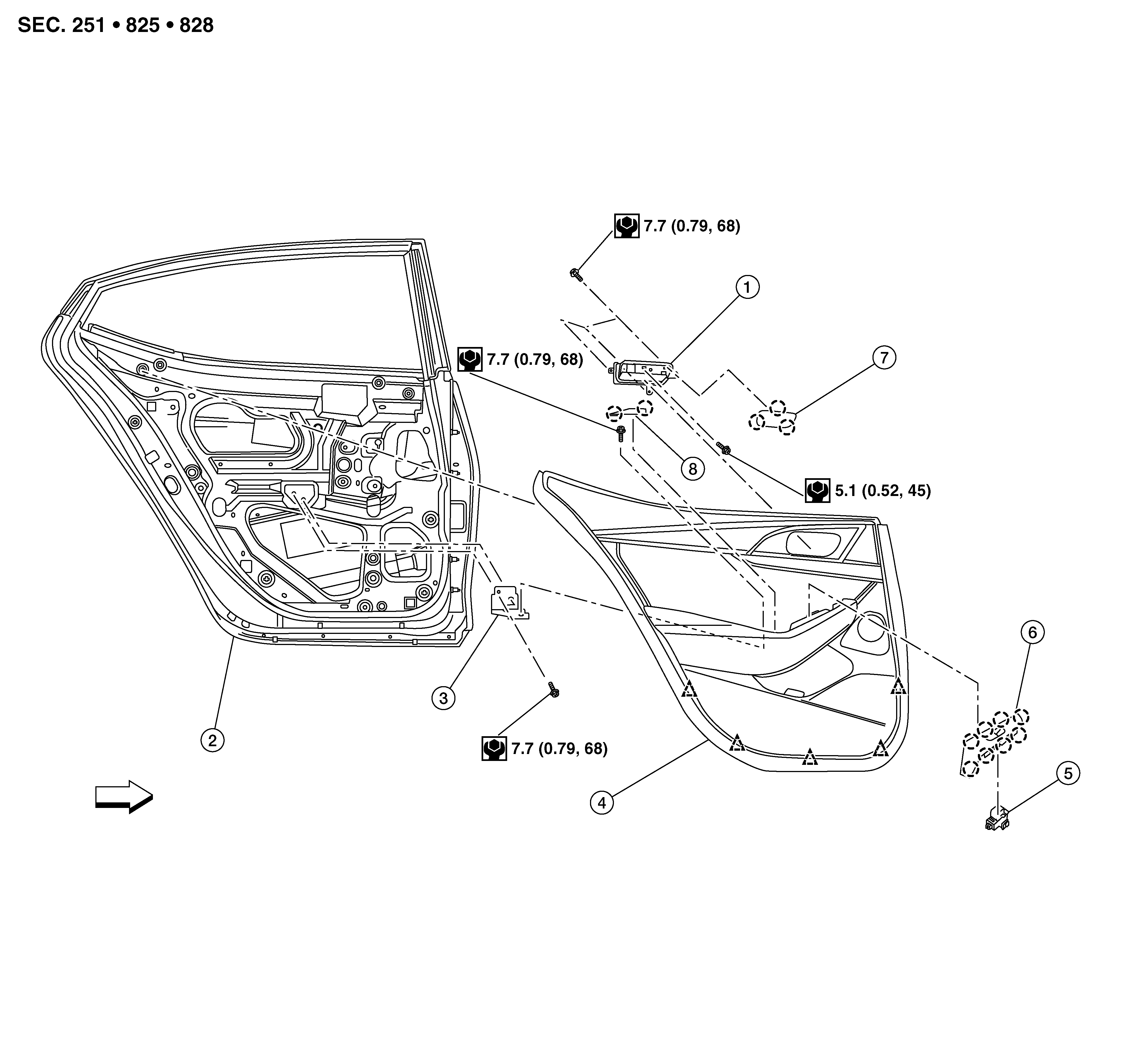

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
NOTE:
LH side shown above.
|
1.
|
Rear door inside handle
|
2.
|
Rear door panel
|
3.
|
Rear door finisher bracket
|
|
4.
|
Rear door finisher
|
5.
|
Rear power window switch
|
6.
|
Rear power window switch finisher
|
|
7.
|
Rear door inside handle escutcheon
|
8.
|
Rear door pull handle cover
|
|
Clip
|
|
|
Pawl
|
|
Front
|
